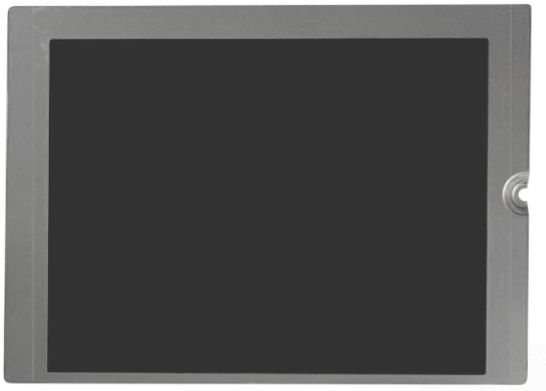

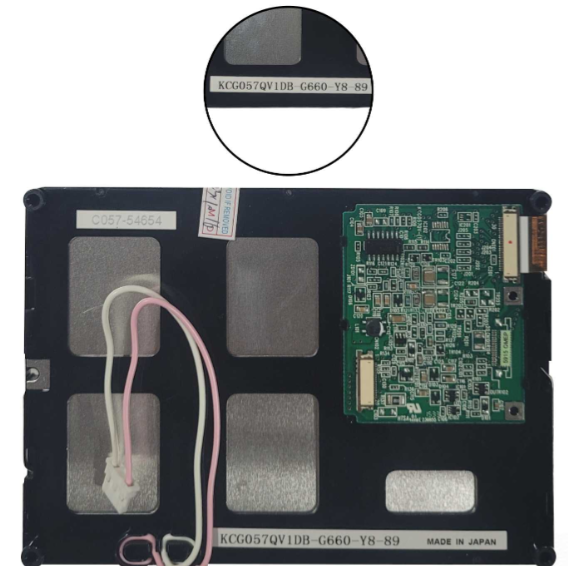

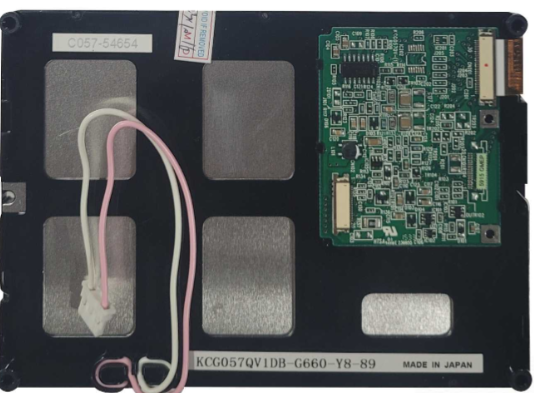

The Kyocera KCG057QV1DB-G660 is a 5.7-inch CSTN-LCD display engineered for industrial, embedded, and general-purpose electronic applications. Featuring a QVGA resolution of 320×240 pixels and a 70 PPI pixel density, this display ensures sufficient visual clarity in compact environments such as control interfaces, handheld instruments, and legacy embedded systems.
The display offers an active area of 115.2(W) × 86.4(H) mm, balancing screen space and overall module footprint for integration into space-constrained devices. Its STN (Super Twisted Nematic) technology, operating in Normally Black, Transmissive mode, enhances readability and contrast in default black states while maintaining energy efficiency typical of passive-matrix panels.
The contrast ratio of 60:1 (typical) supports clear differentiation in static image content, and its viewing angles of 50° (left/right), 20° (up), and 35° (down) (CR≥2) ensure reasonable visibility from multiple directions, which is critical for user-facing industrial devices. The response time of 180ms (Tr) / 170ms (Td) provides sufficient smoothness for moderate dynamic content, such as simple GUI transitions and text updates.

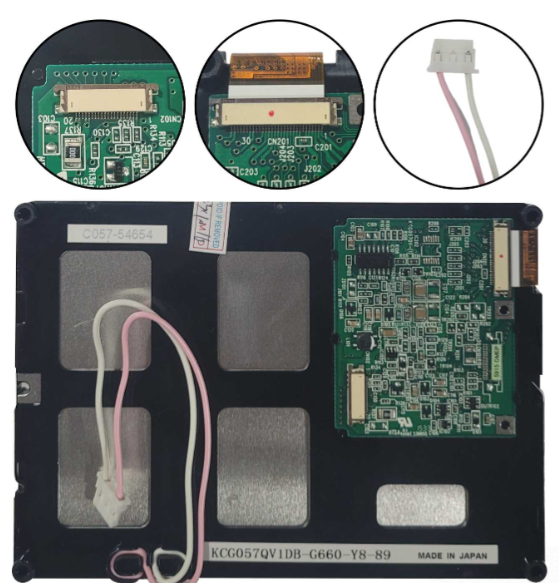

The 20-pin, 1-channel, 8-bit parallel data interface simplifies connectivity with common microcontrollers and display drivers, supporting a 75Hz refresh rate for stable, flicker-free performance. It is backlit with a single CCFL lamp, which provides reliable and consistent brightness for indoor viewing, though the specific luminance value is not provided.
