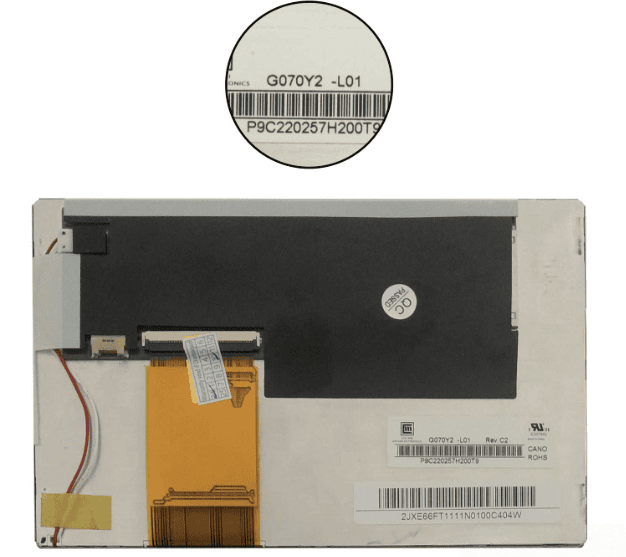

CHIMEI G070Y2-L01 LCD DISPLAY

Specifications:

Display Type: a-Si TFT-LCD (Active Matrix)
Screen Size: 7.0 inches (diagonal)
Resolution: 800 × 480 (WVGA)
Aspect Ratio: 15:9
Pixel Pitch: 0.1905 mm × 0.1905 mm
Color Depth: 262K colors (6-bit)
Brightness: ~300–400 cd/m² (typical)
Contrast Ratio: ~500:1
Viewing Angle: 70° (L/R), 50° (U), 70° (D) – typical
Surface Treatment: Anti-glare (AG), Hard Coating (3H)
Backlight: White LED (edge-lit, long-life)
Interface: 1-channel LVDS
Power Supply Voltage: 3.3V (typical)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C

Non-returnable

₹11,750.00 ₹13,750.00

Product Details

The ChiMei G070Y2-L01 is a 7.0-inch a-Si TFT-LCD module purpose-built for compact embedded display systems that demand a balance of sharp visuals and energy efficiency. Featuring an 800×480 WVGA resolution, this module delivers crisp and vivid imagery, ideal for applications such as handheld terminals, medical diagnostics, portable control panels, and industrial instrumentation.

This panel includes a white LED backlight, ensuring good brightness with extended lifespan, and a single-channel 6-bit LVDS interface, allowing for low-noise and high-speed data transfer. The slim design and low power consumption make it especially well-suited for battery-powered and space-constrained environments.
