Specifications: 1. Memory Type: NOR Flash 2. Density: 128Mb (16MB) 3. Interface: SPI (Serial Peripheral Interface) 4. Operating Voltage: 2.7V to 3.6V 5. Operating Frequency: Up to 133 MHz (standard SPI), 104 MHz (QPI) 6. Page Size: 256 bytes 7. Sector Size: 4KB, 32KB, 64KB blocks 8. Write/Erase Cycles: 100,000 per sector 9. Data Retention: 20+ years 10. Package Type: 8-SOIC (208 mil) – standard narrow-body 11. Temperature Range: –40°C to +85°C (industrial grade) 12. Part Number: W25Q128JVSIQ 13. Dimensions: Approx. 5.28mm x 5.28mm x 1.75mm (SOIC-8) 14. Weight: ~0.5 grams
Non-returnable
₹130.00 ₹200.00
Share :
Product Details

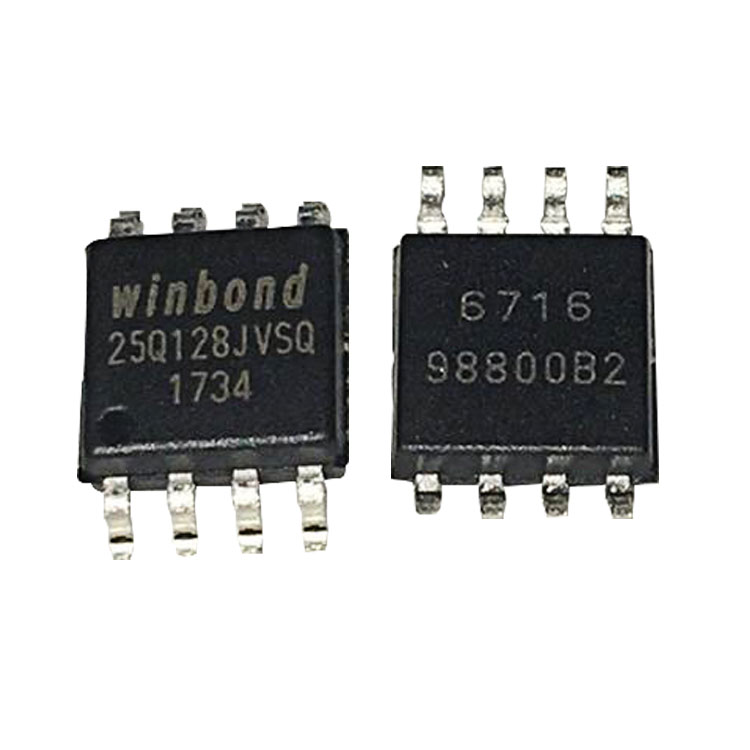

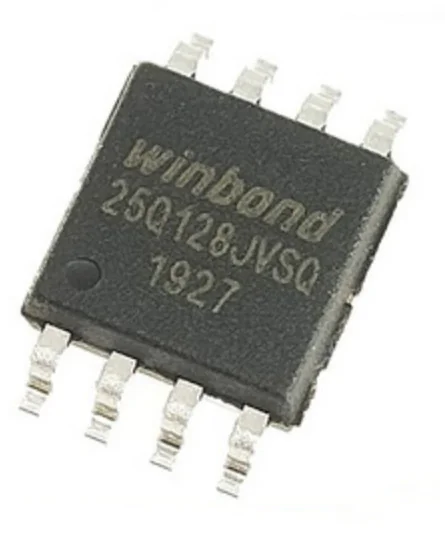

The W25Q128JVSIQ is a 128M-bit (16MB) Serial Flash Memory IC from Winbond Electronics, designed for high-performance embedded systems. Featuring a standard SPI interface (Serial Peripheral Interface) and supporting Dual/Quad SPI modes, this flash memory chip offers fast data transfer rates up to 133 MHz and is ideal for code shadowing, firmware storage, data logging, and configuration in applications such as IoT devices, industrial controllers, embedded Linux systems, and consumer electronics. It operates from a single 2.7V to 3.6V power supply, making it compatible with a broad range of microcontrollers and SoCs.
🔹 Key Features: • 128M-bit (16MB) capacity • SPI interface with support for Dual I/O and Quad I/O operations • Uniform 4KB sectors, 32KB blocks, and 64KB blocks • Fast Read Performance: Up to 133 MHz clock rate • Supports SFDP (Serial Flash Discoverable Parameters) • Low power consumption with Deep Power-Down mode • Software and hardware write protection, block lock protection • Supports JEDEC standard ID and 20-year data retention
