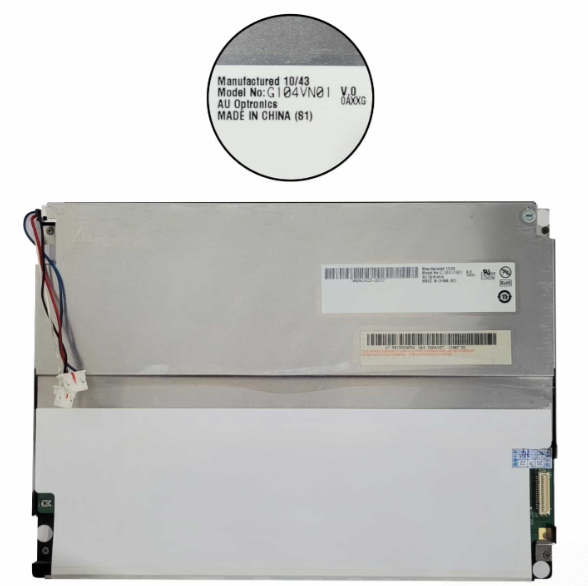

AUO G104VN01-V.0 LCD DISPLAY

The AUO G104VN01-V.0 LCD Module is 10.4" TFT-LCD display offers exceptional performance with a resolution of 640×480 (VGA) and a pixel density of 76 PPI. The active area measures 211.2(W)×158.4(H) mm, ensuring a clear and vibrant display. With a luminance of 450 cd/m² (typical) and a contrast ratio of 700:1 (typical), this screen provides high brightness and sharp image quality. The viewing angle of 80/80/60/80 ensures great visibility from multiple directions.

The display has a response time of 20/10 ms (Typ. Tr/Td) for quick image rendering. It uses a-Si TFT-LCD technology with antiglare hard coating (3H) for added durability. Operating in TN mode, it supports 262K colors and 45% NTSC color gamut. The signal interface is CMOS (1ch, 6-bit) with a 31-pin connector. Power supply is 3.3V/5.0V, and it features 2 CCFL backlights with 50K hours lifespan. It operates efficiently in temperatures from -30°C to 85°C.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
