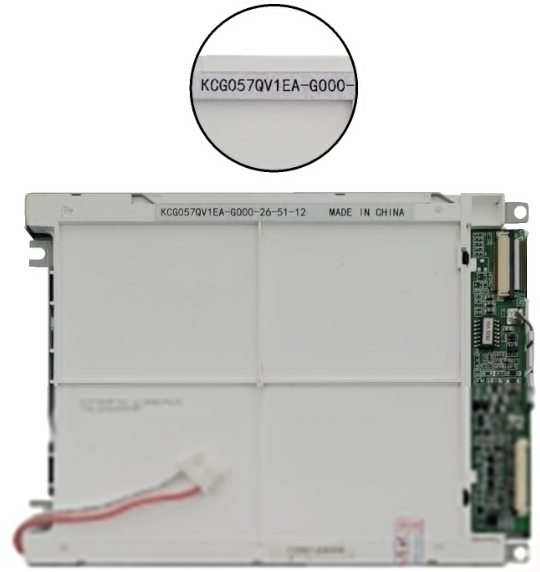

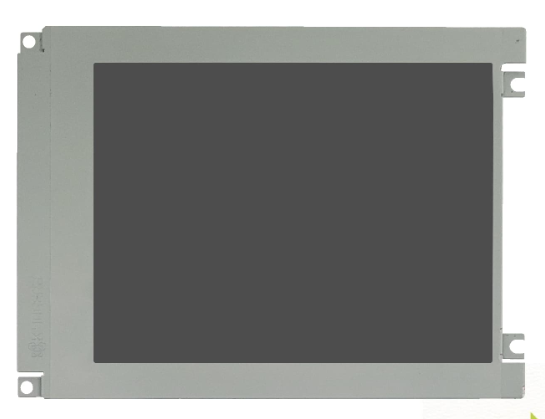

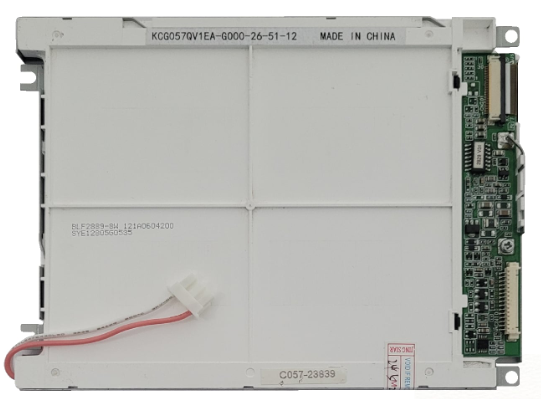

The Kyocera KCG057QV1EA-G000 is a 5.7-inch Color Super Twisted Nematic (CSTN) LCD module engineered for industrial and commercial-grade applications such as medical equipment, control systems, and factory automation panels. Offering a QVGA resolution of 320×240 pixels and a pixel density of 70 PPI, this display provides clear, color-accurate visuals suitable for both text-based interfaces and moderate graphical content.
Operating in STN, normally black, transmissive mode, the display delivers improved contrast and legibility, especially under consistent indoor lighting. It features a 38% NTSC color gamut and utilizes RGB vertical stripe pixel arrangement for enhanced color sharpness and visual consistency. The panel supports viewing angles of 50° (left), 50° (right), 20° (top), and 35° (bottom), suitable for fixed installations with limited viewing angle requirements.
With a typical luminance of 250 cd/m² and contrast ratio of 55:1, the KCG057QV1EA-G000 performs reliably in environments with moderate lighting. Its response times of 180 ms (Tr) and 170 ms (Td) are ideal for applications with static or low-refresh content. The CCFL backlight offers a robust lifetime of 54,000 hours, contributing to minimal maintenance and long operational use.

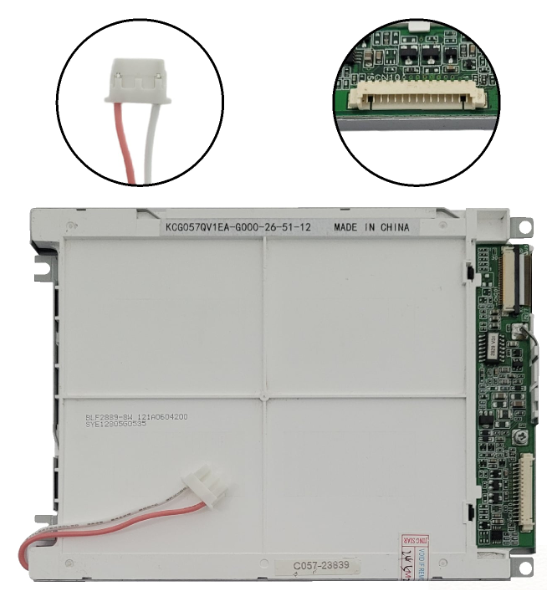

This module interfaces via a 15-pin 1-channel 8-bit parallel connection, ensuring compatibility with many industrial-grade controllers. Supporting a 75 Hz frame rate and 3.3V / 5.0V supply, it integrates efficiently into embedded systems. Rated for 0°C to 60°C operating temperature, this display excels in demanding but controlled environments.
