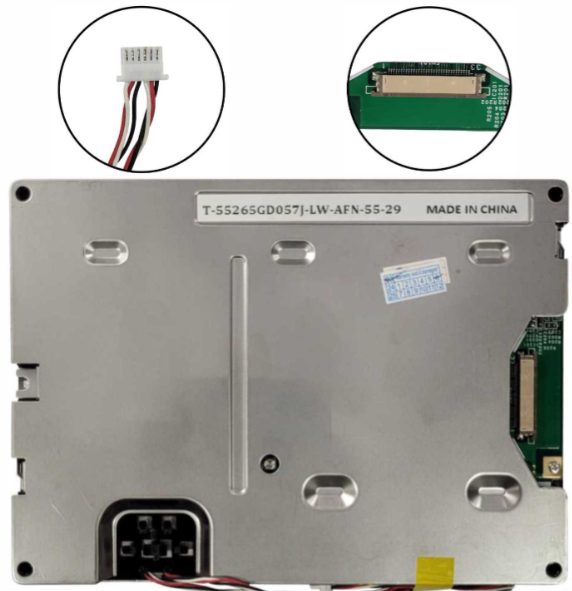

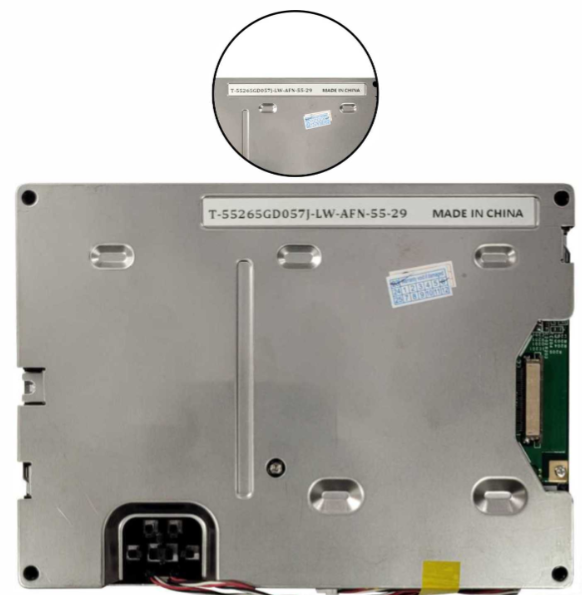

The Kyocera T-55265GD057J-LW-AFN is a robust 5.7-inch TFT-LCD display module engineered for industrial, embedded, and automation systems that require reliable visual output in demanding environments. With a QVGA resolution of 320 × 240 pixels and a brightness of 500 cd/m², this panel ensures crisp, vivid visibility even under strong ambient light conditions—making it highly effective for outdoor or factory-floor applications.
Built with a-Si TFT technology and operating in TN, Normally White, Transmissive mode, the module delivers 262K color support and a contrast ratio of 350:1, producing sharp images and vibrant color output suitable for graphic and data display. The panel’s viewing angle of 70°/70°/70°/70° (L/R/U/D) ensures good readability from all sides, with the best clarity optimized for a 12 o’clock viewing position.
The display’s response time of 21 ms (Tr) and 10 ms (Td) ensures smooth image transitions for real-time system feedback and visual responsiveness. It interfaces via a Parallel RGB (1 channel, 6-bit) signal with a 33-pin connector, making integration straightforward in both legacy and modern embedded systems. Power is supplied at 3.3V, providing energy-efficient operation.
Its 4S3P WLED backlight system guarantees strong illumination over an extended lifespan but does not include an integrated LED driver—allowing for more customizable backlight control in system design. The module is built to perform in temperature ranges of -20°C to +70°C, ensuring reliable operation in harsh and variable industrial conditions.
