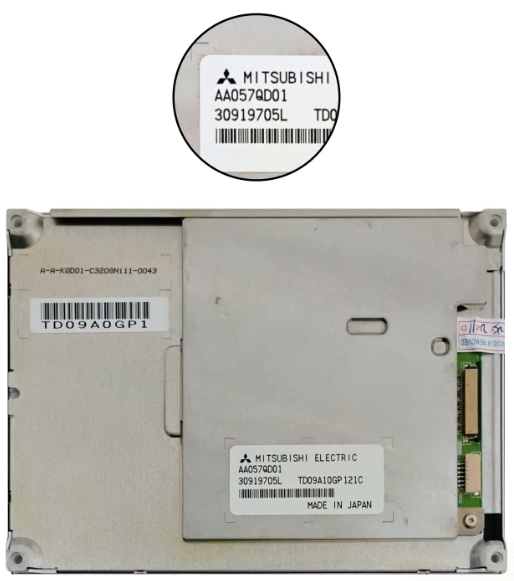

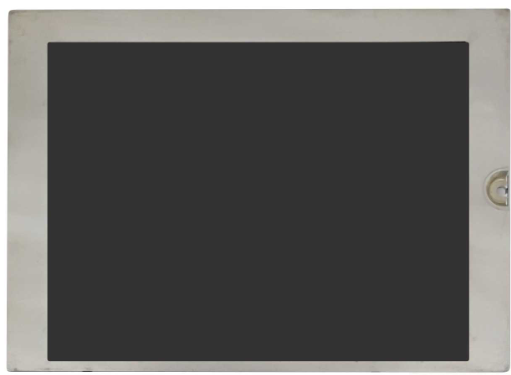

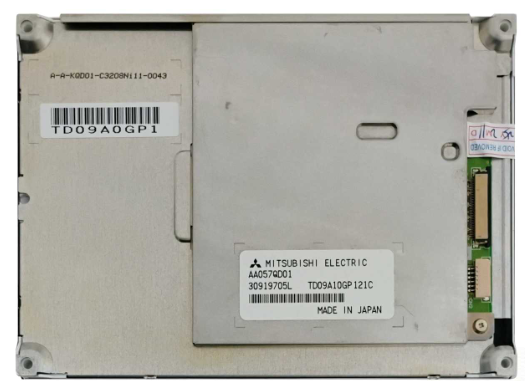

Mitsubishi AA057QD01 LCD display

The Mitsubishi AA057QD01 LCD Module is a 5.7″ a-Si TFT-LCD panel that delivers a 320×240 QVGA resolution with a 70 PPI pixel density, offering clear and crisp visuals. It features an active area of 115.2(W)×86.4(H) mm, enclosed within a compact frame of 144(W)×104.6(H)×9.3(D) mm, allowing flexible integration into various embedded or industrial devices.

This panel provides high luminance of 450 cd/m² and an impressive contrast ratio of 800:1, ensuring vibrant images with deep contrasts. It supports wide viewing angles of 80/80/80/60 degrees (CR≥10), maintaining consistent image quality from multiple perspectives. The response time of 8/22 ms (Tr/Td) enables smooth visual transitions, making it suitable for real-time or dynamic interfaces.

The display is protected by a clear, 3H hard coating, enhancing durability and glare resistance. Operating in TN, Normally White, Transmissive mode, it supports 262K colors with 50% NTSC color gamut, delivering rich visuals for professional applications.

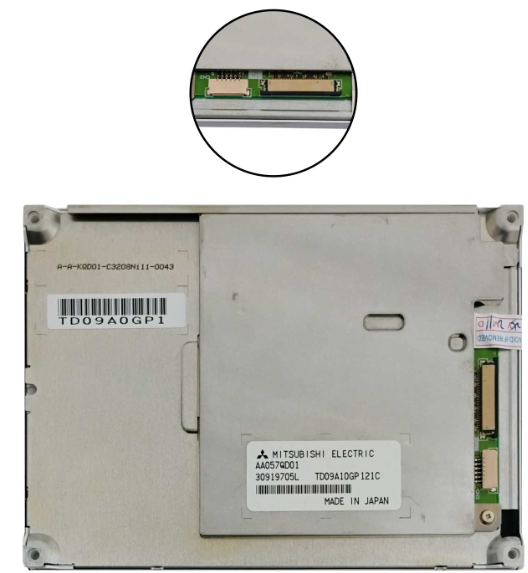

Connectivity is handled via a CMOS (1 ch, 6-bit) interface with a 33-pin connector, running at a 60Hz refresh rate. Powered by 3.3V (Typ.), the display is equipped with a WLED backlight system featuring an exceptional 100,000-hour lifespan and comes with an integrated LED driver for simplified implementation.

Designed for resilience, the module can operate and be stored within -30°C to 80°C, making it a highly reliable choice for rugged industrial or outdoor environments.
