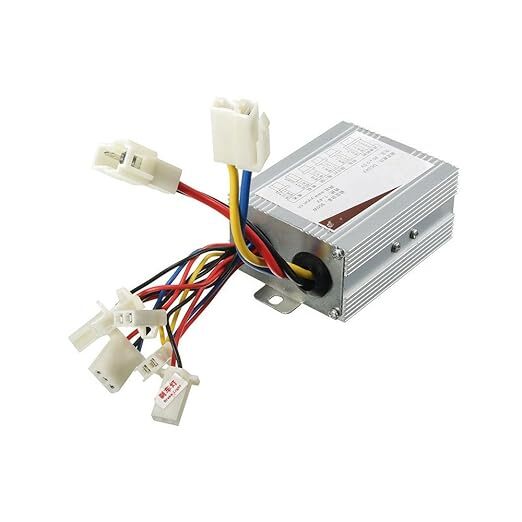

24V 350W Brush Controler model 4L-03

The 4L-03 motor controller is a compact and efficient brushed DC motor speed controller, designed specifically for 24V Permanent Magnet DC (PMDC) motors up to 350W power. It enables precise control of motor speed and direction for electric vehicles like e-bikes, scooters, carts, and small automation systems.

This controller accepts 24V DC input, supports a high current output, and includes protective circuitry such as overvoltage, overcurrent, and thermal shutdown. It is compatible with throttle handles, key locks, brake switches, and reverse gear functionalities.

Features: DC motor speed controller compatible with 24V brushed motors Supports 350W power rating with adjustable throttle input Provides smooth acceleration and braking control Specifications: Input Voltage: 24V DC Rated Power: 350W max Control Input: PWM throttle (0-5V or 0-3.3V) Protection: Overcurrent, thermal shutdown
