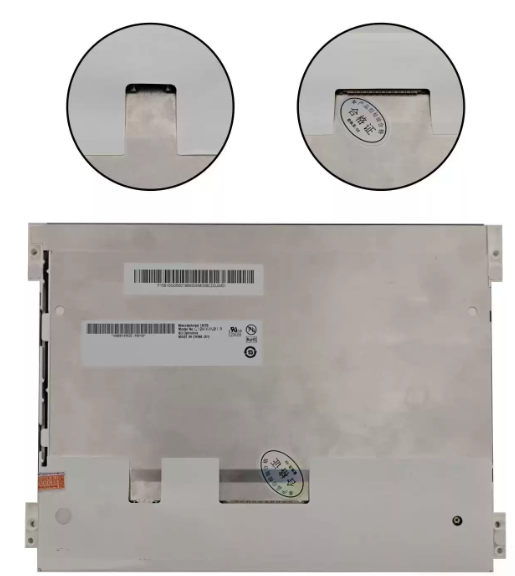

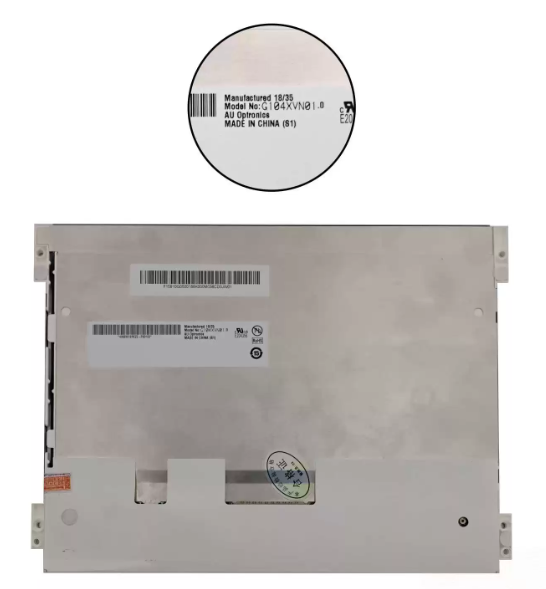

AUO G104XVN01.0 LCD DISPLAY

The AUO G104XVN01.0 LCD Module is a premium display designed for industrial, medical, and high-performance applications. With a 1024(RGB) × 768 resolution and a 123 PPI pixel density, it ensures sharp, detailed visuals. The active area of 210.4 mm × 157.8 mm provides a balanced screen size for clear and vibrant image rendering.

Built with PSA (Polymer Stabilized Alignment) technology, this a-Si TFT-LCD panel offers exceptional viewing angles (89° in all directions, CR≥10) and an impressive 3000:1 contrast ratio (Typ.), delivering deep blacks and bright highlights. The 470 cd/m² brightness ensures excellent visibility even in high ambient light environments. The antiglare hard coating (3H) minimizes reflections for a superior viewing experience.

The LVDS (1-channel, 6/8-bit) signal interface with a 30-pin connector supports 262K to 16.2 million colors (60% NTSC coverage), ensuring rich color depth. Operating at a 60Hz frame rate, it delivers smooth motion performance. The 3.3V power supply optimizes energy efficiency.

With a dual-string WLED backlight, the display boasts an extended lifespan of 50,000 hours. Designed for extreme conditions, it operates in a temperature range of -30°C to 80°C and offers a robust structure with a weight of 295g.

The AUO 10.4" TFT-LCD panel is a reliable and durable choice for industrial displays, medical monitors, and embedded systems requiring high contrast, wide viewing angles, and long-term performance.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
