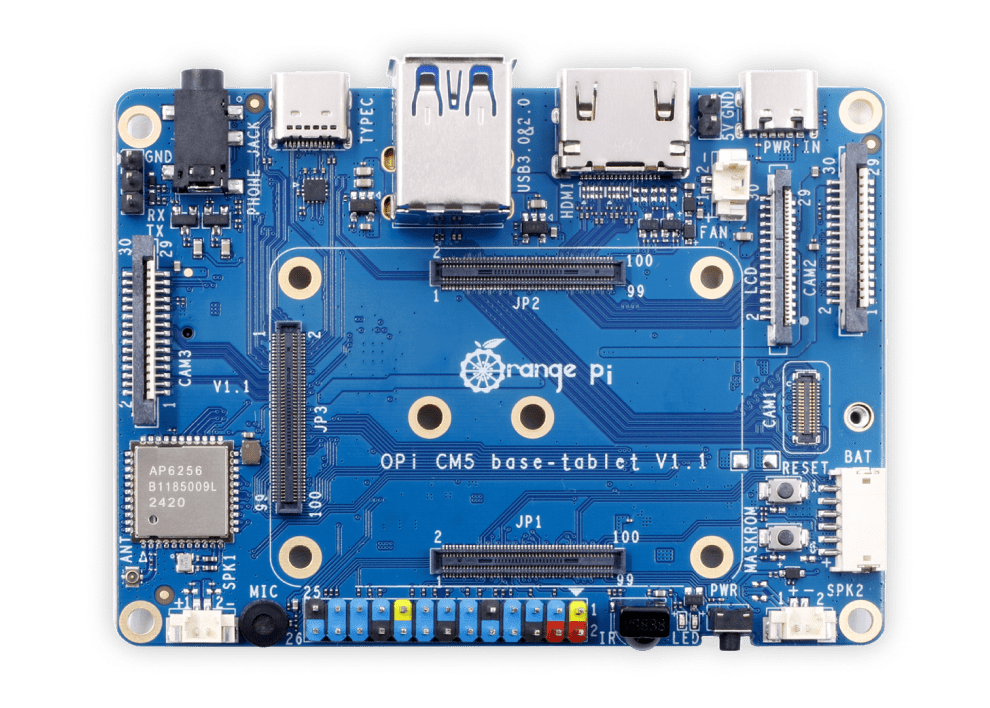

OrangePi CM5 Tablet Base Board

The OrangePi CM5 Tablet Base Board is a carrier board specifically designed to work with the Orange Pi Compute Module 5 (CM5), a powerful RK3588S-based module. This tablet-style base board provides a wide range of I/O interfaces, touch display support, and tablet-centric features, making it ideal for building custom tablets, human-machine interfaces (HMI), smart displays, and embedded portable applications.

It enables developers and system integrators to prototype and deploy applications quickly by providing connectivity for touchscreens, batteries, camera modules, and peripheral ports, while fully exposing the capabilities of the CM5 module.

Key Features:

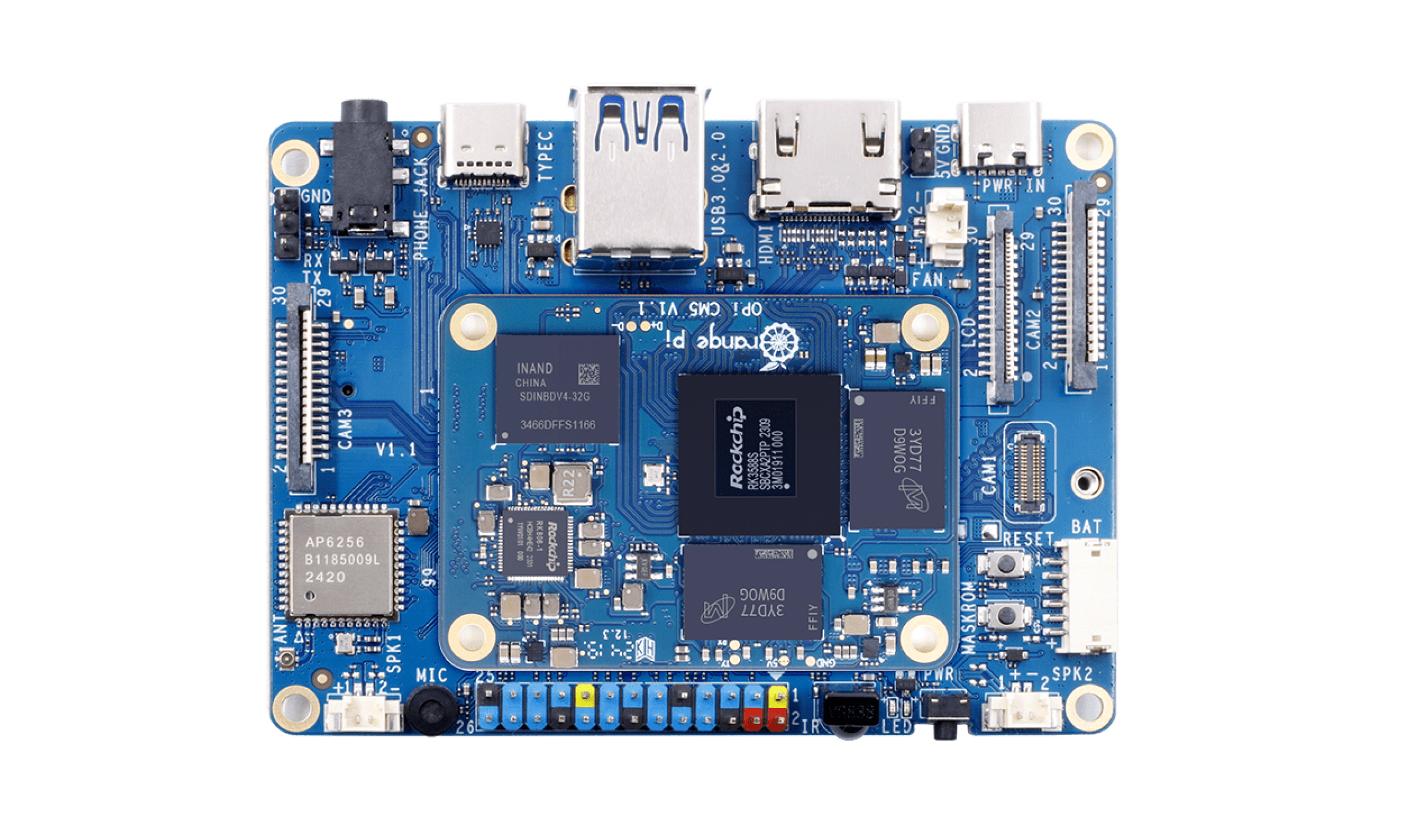

• Designed for use with Orange Pi CM5 (RK3588S SoM)

• Tablet-style layout with support for capacitive touch displays

• Multiple high-speed USB interfaces (Type-C and Type-A)

• HDMI output for external display

• MIPI DSI and MIPI CSI connectors for LCD and camera modules

• eDP display interface support

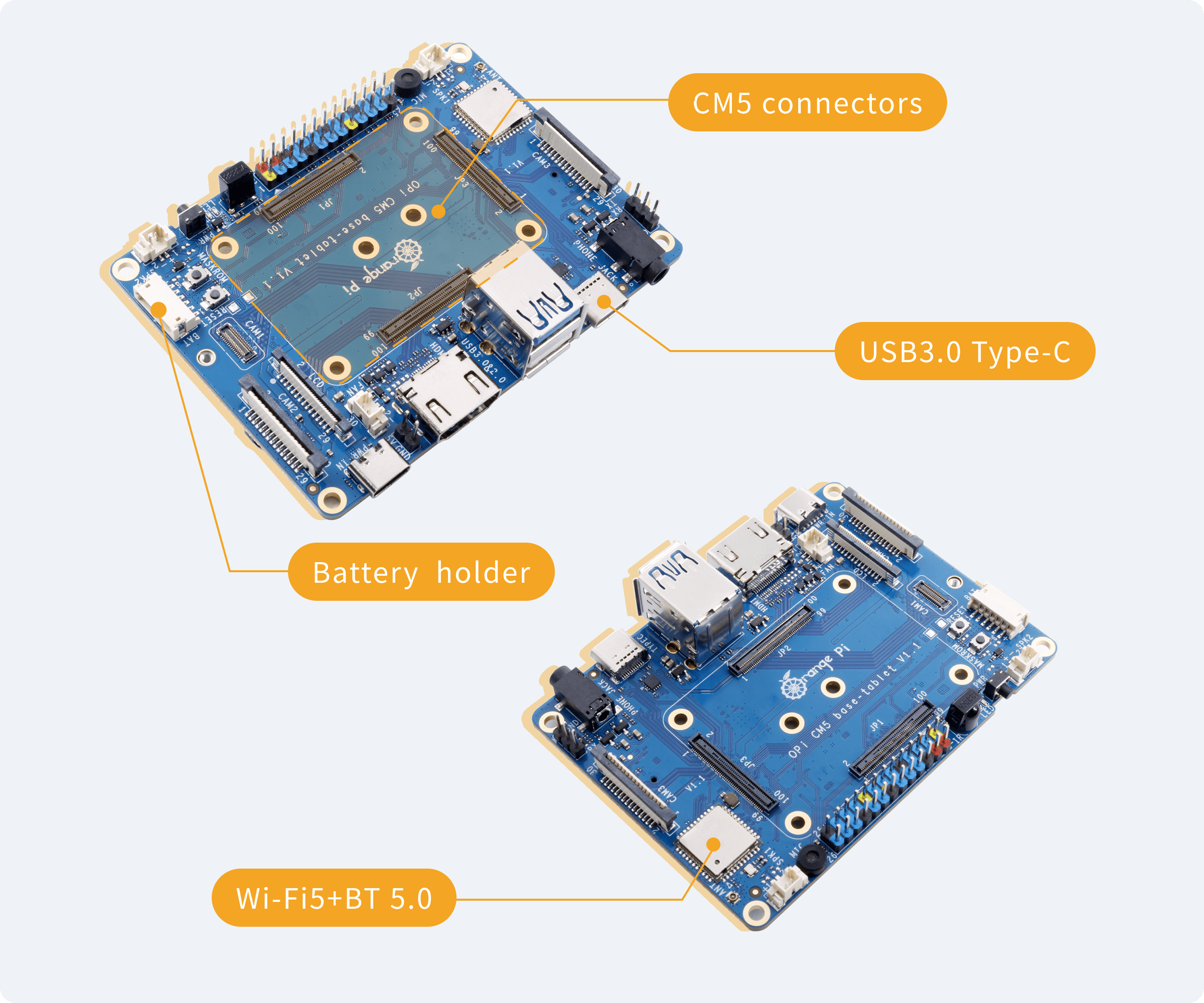

• Built-in battery management system with charging support

• Support for audio output, microphones, and speakers

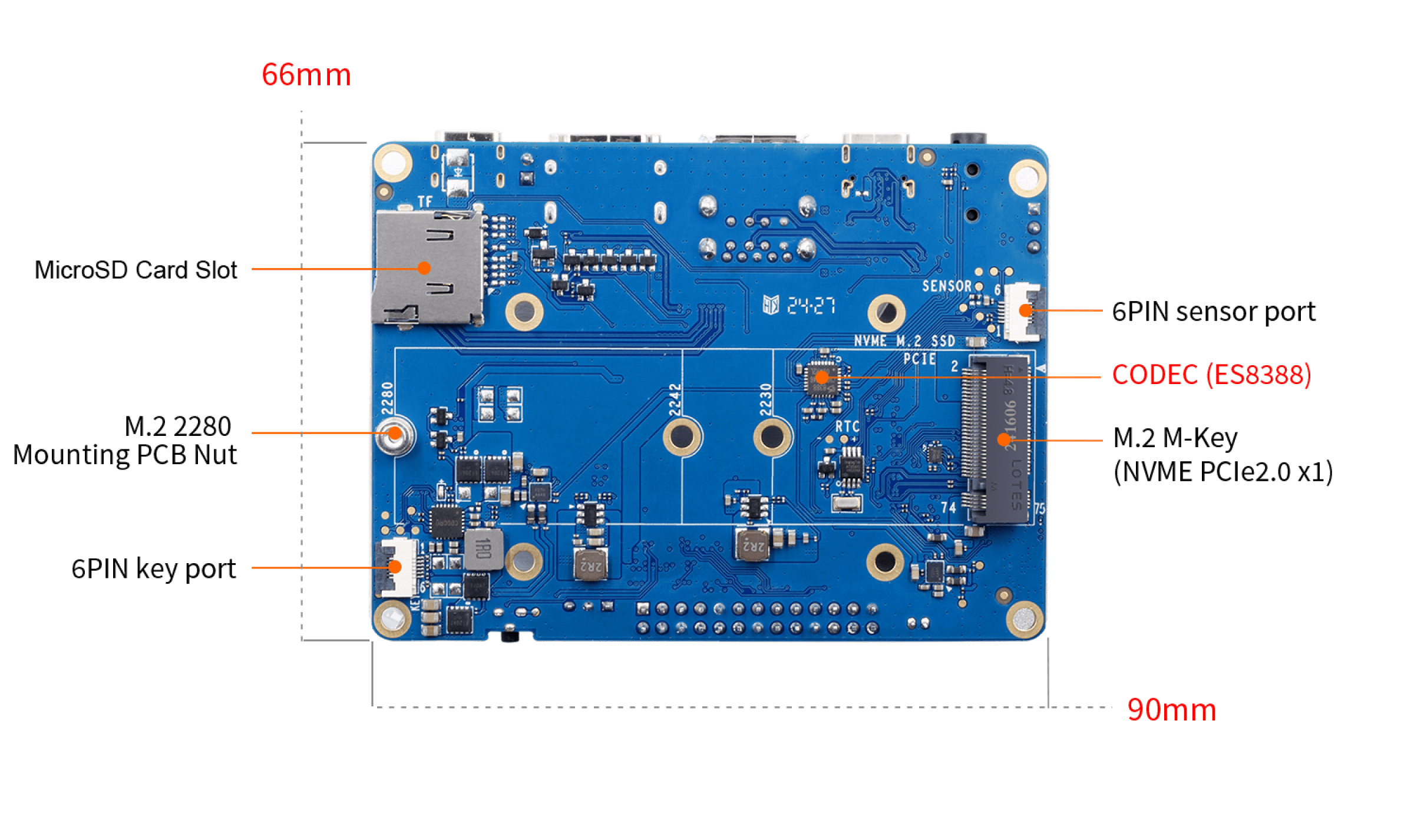

• MicroSD card slot and onboard eMMC interface

• WiFi and Bluetooth module support

• Multiple GPIOs, I2C, UART, and SPI interfaces exposed

• Onboard power management and DC power input
