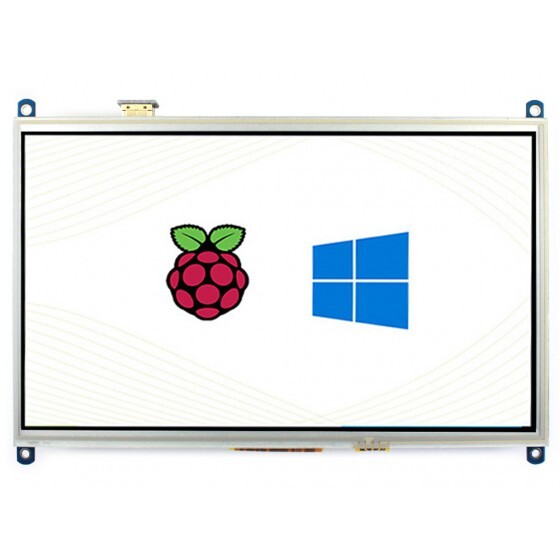

10.1inch Resistive Touch Screen LCD, 1024×600, HDMI, IPS, Supports Raspberry Pi / PC

The Waveshare 10.1-inch HDMI IPS Capacitive Touch Screen LCD (E) offers a stunning 1024×600 resolution with a wide-angle IPS display and optical bonding technology, providing crisp visuals, improved clarity, and reduced glare. This 10.1-inch screen is equipped with a capacitive touch panel supporting up to 5-point multi-touch, delivering a smooth and responsive touch experience ideal for interactive applications, GUI development, and embedded systems.

Designed for seamless integration, the display supports a wide range of platforms including Raspberry Pi, Jetson Nano, and PC (Windows/Ubuntu). It features HDMI for video input and a USB interface for touch functionality, allowing easy plug-and-play connectivity. Whether you are developing IoT projects, building touch-based kiosks, or creating custom interfaces, this Waveshare screen delivers robust performance, versatility, and an enhanced user interface experience.

Applications:

1. Industrial Control

2. Charging Pile

3. Smart Home

4. Medical

5. Internet of Things

6. Robot,

7. Vehicle-mounted instruments,

8. Vending instruments

9. Intelligent CNC, cosmetic instruments

Features:

1. Hardware resolution: 1024 × 600.

2. Touch Controller: GT7385

3. Touch Panel Type: Capacitive (10-point touch)

4. Aspect Ratio: 16:9

5. Power Consumption: TBD

6. Backlight Current: TBD

7. The toughened glass panel features 6H hardness and 10-Points capacitive touch.

8. Fully Laminated for better touching.

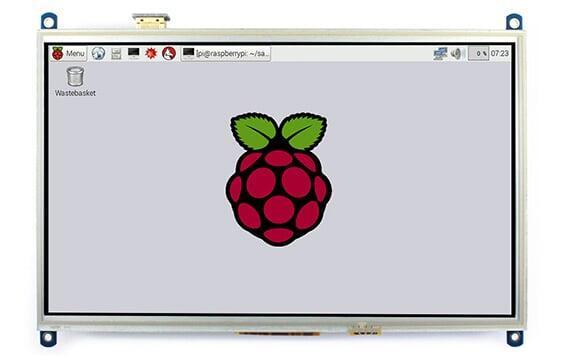

9. When used with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali and Retropie.

10. When used as a computer monitor, it supports Windows 11/10/8.1/8/7.

11. Features 3.5mm Headphone jack and 4PIN audio interface for HDMI audio.

12. Supports common game consoles like XBOX360 and Switch.

13. The backlight is controllable for power saving.
