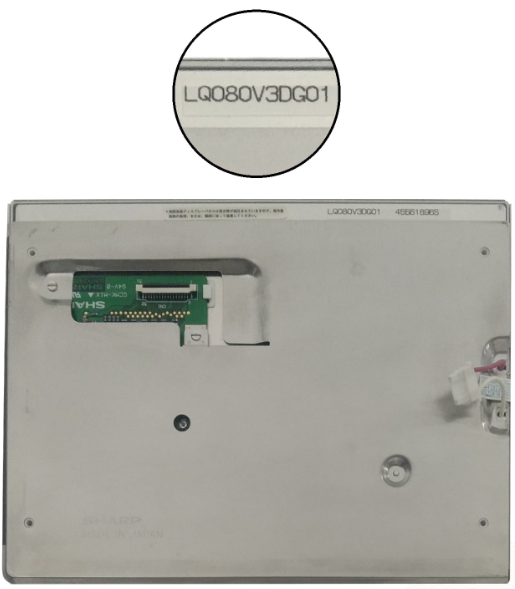

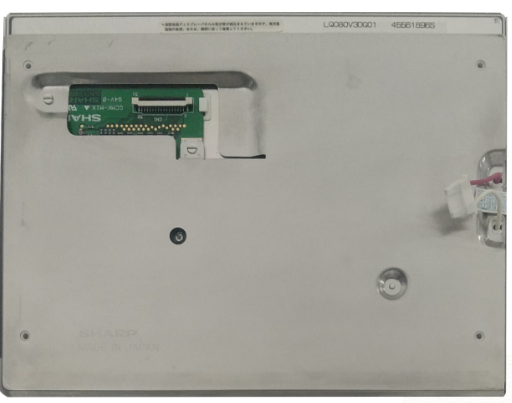

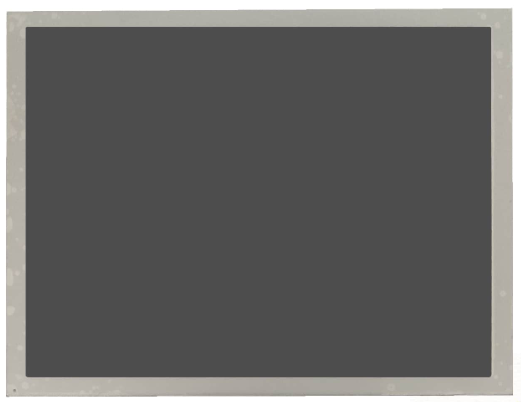

The Sharp LQ080V3DG01 is an 8.0-inch a-Si TFT-LCD panel designed for embedded systems, industrial control interfaces, and legacy applications where reliable, straightforward display performance is essential. This compact display balances clarity and size with a VGA resolution of 640 × 480 pixels at a pixel density of 100 PPI, suitable for a range of standard graphical interfaces.
The display’s active area measures 162.24 mm (W) × 121.68 mm (H), providing ample space to render control dashboards, simple graphics, and text with sufficient detail for most industrial or embedded tasks.
With a luminance of 380 cd/m², the panel ensures good visibility under typical indoor lighting conditions, while a contrast ratio of 250:1 offers basic but functional differentiation between light and dark elements. Though modest by contemporary display standards, these characteristics are well-suited to applications where extreme color fidelity and contrast are not critical.

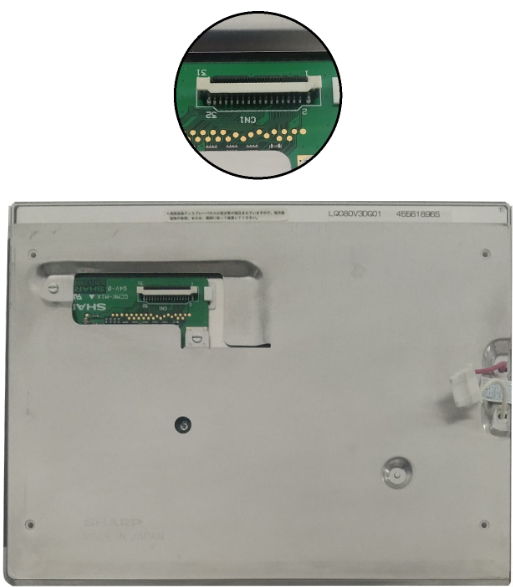

Operating in TN (Twisted Nematic), Normally White, transmissive mode, the panel provides a crisp white background, balancing brightness and power efficiency. The display supports 262K colors via a parallel RGB (1 channel, 6-bit) interface connected through a 32-pin connector, simplifying integration into legacy or embedded systems with parallel data buses.
Viewing angles are 65° horizontally (both directions) and 65°/55° vertically (measured at contrast ratio ≥10), offering decent off-axis visibility for most typical use cases. The response time is 30 ms rise / 50 ms fall, adequate for static or slow-changing content such as control panels, monitoring screens, and data logs.
