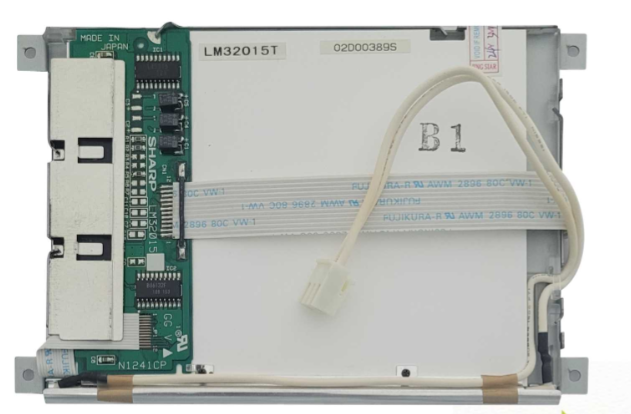

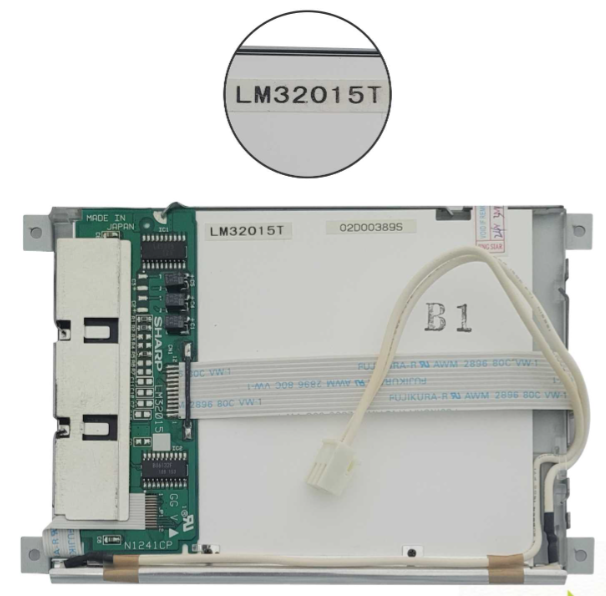

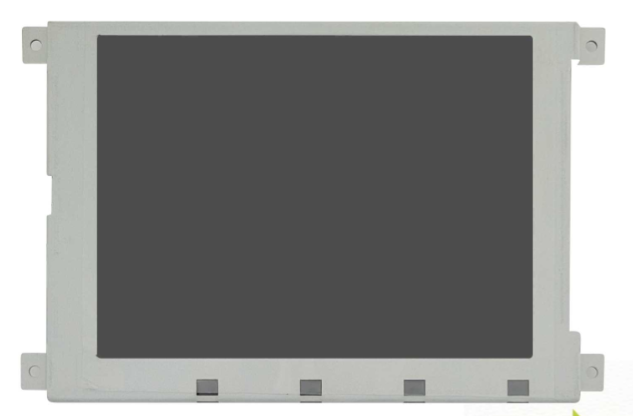

The Sharp LM32015T LCD Module is a 5.7″ STN-LCD display tailored for industrial and embedded systems where durability, low power consumption, and basic visual functionality are essential. With a 320×240 resolution (QVGA) and 70 pixels per inch (PPI), it provides a sufficient level of detail for rendering clear monochrome graphics, menus, and text-based interfaces. The active display area measures 115.17 mm in width and 86.37 mm in height, offering a decent screen real estate for user interaction or data monitoring.
The panel adopts Super Twisted Nematic (STN) technology in a blue negative mode, which typically displays lighter content (white or light gray) on a dark blue or black background. This configuration enhances contrast and legibility in specific lighting conditions, especially where glare and reflections are concerns.

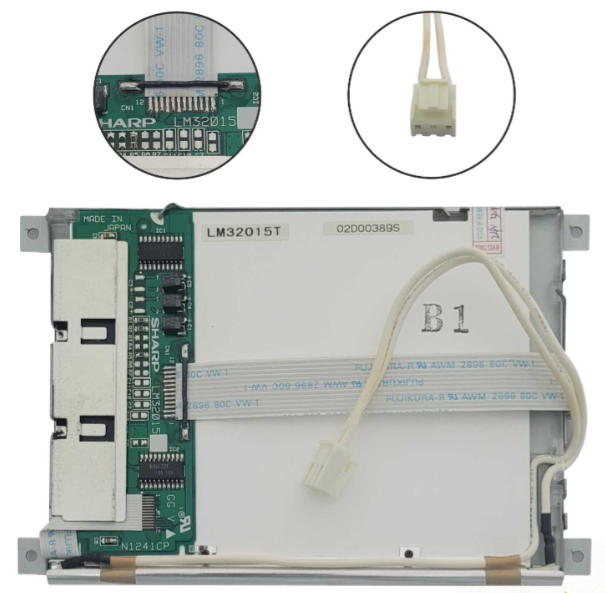

The module utilizes a 4-bit parallel data interface via flexible printed circuit (FPC), supporting seamless connectivity with older or cost-sensitive hardware setups. It operates with a standard 5V power supply, making it compatible with many microcontrollers and embedded platforms.
While the datasheet doesn’t specify backlight, luminance, or response time, the STN panel’s nature implies low refresh rate but high reliability. It’s ideal for static image use cases, such as measurement equipment, diagnostics displays, or retro-style user interfaces.
