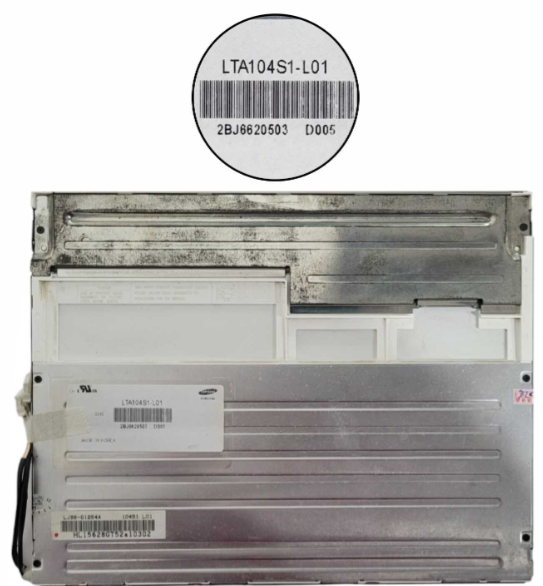

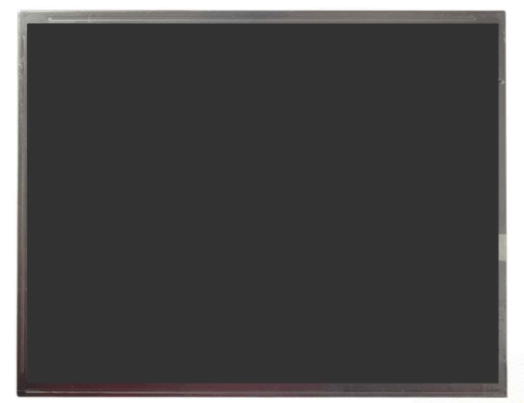

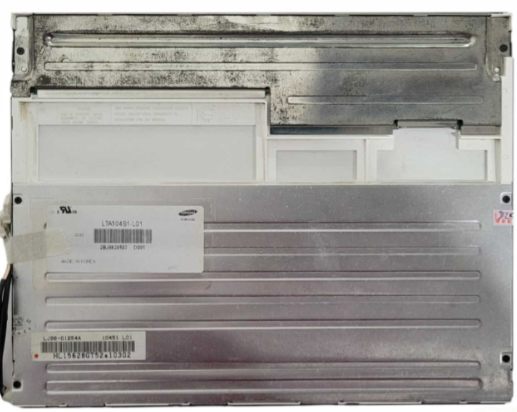

Samsung LTA104S1-L01 LCD display

The Samsung LTA104S1-L01 is a 10.4-inch TFT-LCD module designed for laptops, industrial applications, and digital photo frames. Featuring an SVGA resolution of 800×600 pixels and 96 PPI pixel density, it delivers sharp and clear visuals. The TN, Normally White, Transmissive technology ensures reliable performance with a contrast ratio of 150:1 and 350 cd/m² brightness.

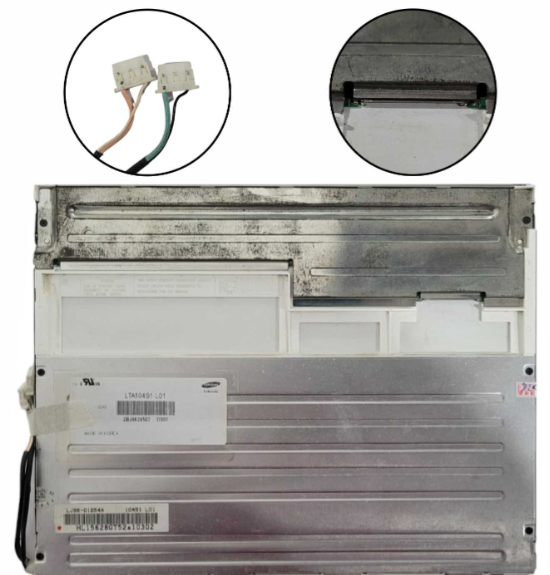

With a viewing angle of 60°/60°/45°/45° (L/R/U/D) and a 6 o’clock optimal viewing direction, the module provides consistent image quality. It features a CCFL backlight with a 30,000-hour lifespan and a response time of 10/30 ms (Tr/Td) for smooth transitions. The LVDS (1 ch, 6-bit) interface with a 20-pin connector ensures seamless integration.

With an operating temperature range of 0°C to 65°C, this display is ideal for embedded systems requiring a reliable and durable display solution.
