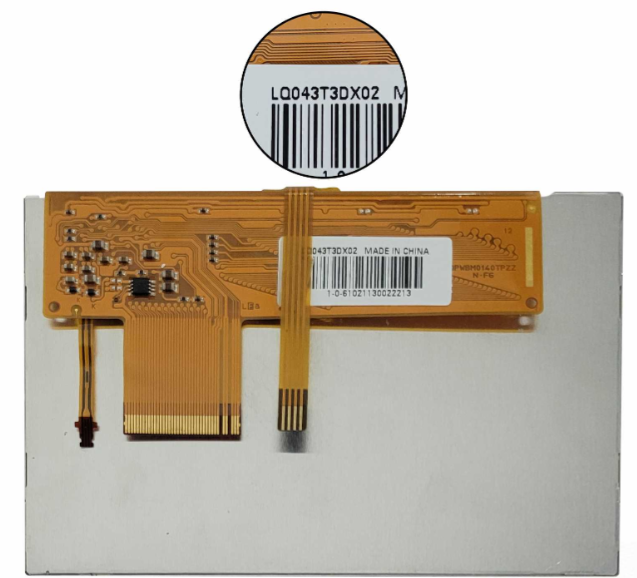

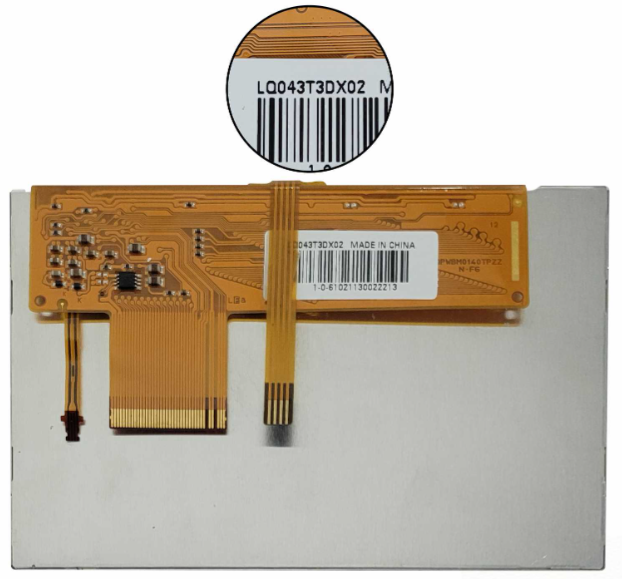

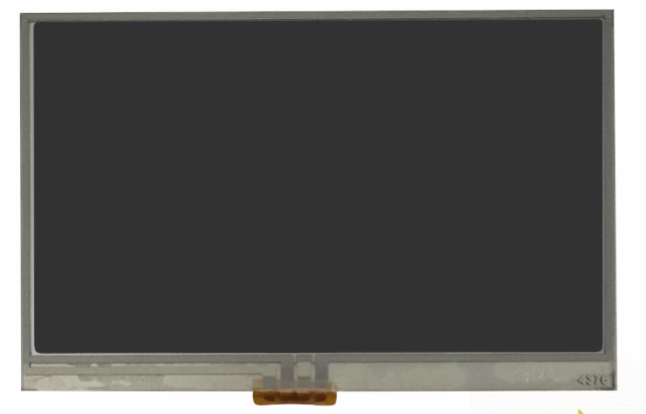

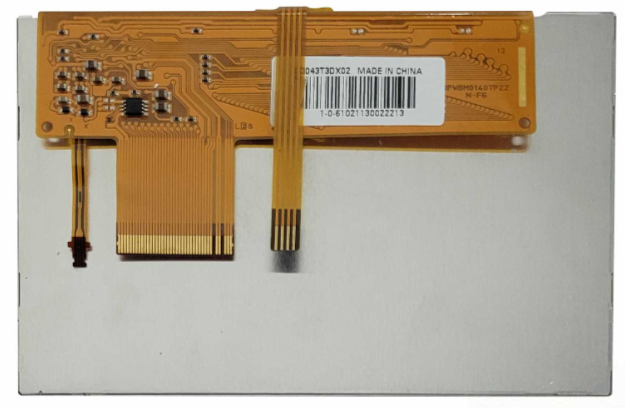

The Sharp LQ043T3DX02 LCD Module with Touch is a 4.3-inch WQVGA display that offers a compact yet visually engaging solution. It features a 480(RGB)×272 resolution at 128 PPI. The active area measures 95.04(W) × 53.856(H) mm, neatly framed within a 105.5 × 67.2 mm outline. This makes it an excellent fit for handheld and space-limited applications.
The display utilizes Advanced Super View (ASV) technology in a normally black, transmissive mode. This allows it to deliver deep blacks and high readability. A clear surface treatment combined with a hard coating ensures extra durability.
While the typical luminance is a modest 165 cd/m², the 400:1 contrast ratio helps balance visual performance. It also offers superior viewing angles—80° in all directions (CR≥10)—ensuring consistent visibility from nearly any position.
With a 30 ms response time (Tr/Td), the panel handles static and moderately dynamic content effectively. It supports 16.7 million colors, enhancing overall display vibrancy.

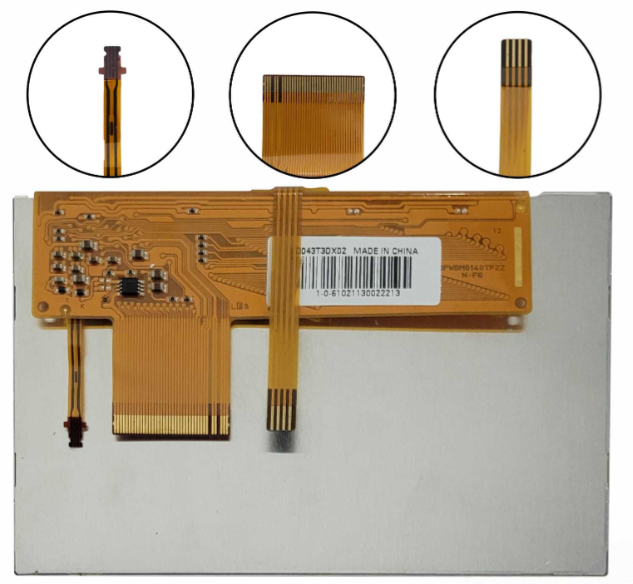

For connectivity, it uses a parallel RGB (1 ch, 8-bit) interface via a 40-pin FPC, making it easy to integrate into embedded systems. It operates on a dual-voltage input (2.5V/5.0V) and is equipped with a 7S1P WLED backlight (driver not included).
Finally, the panel performs reliably within a temperature range of -10°C to 50°C, and can be stored safely between -25°C and 60°C. This makes it a robust choice for compact industrial or consumer-grade applications requiring full-color capability and wide-angle readability.
