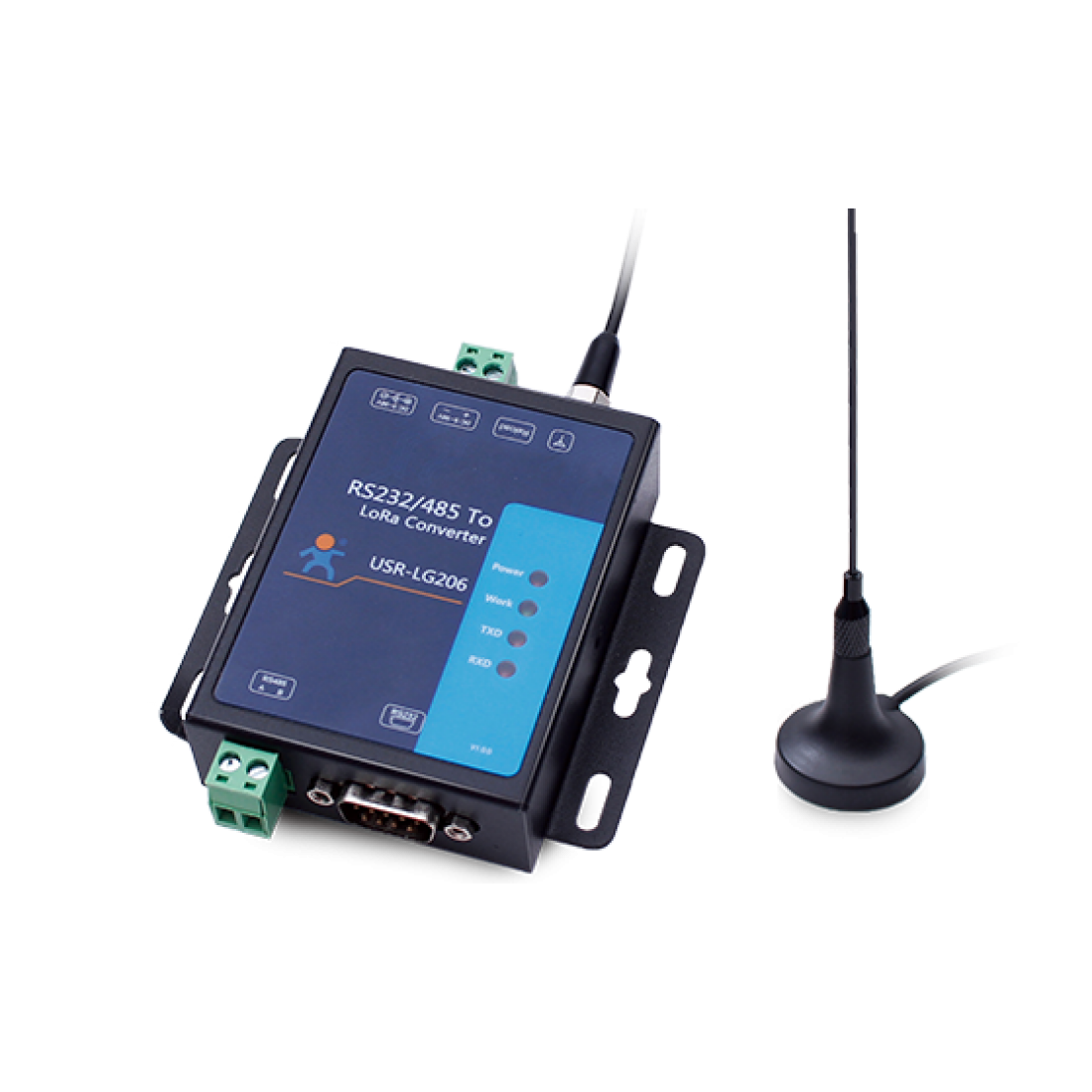

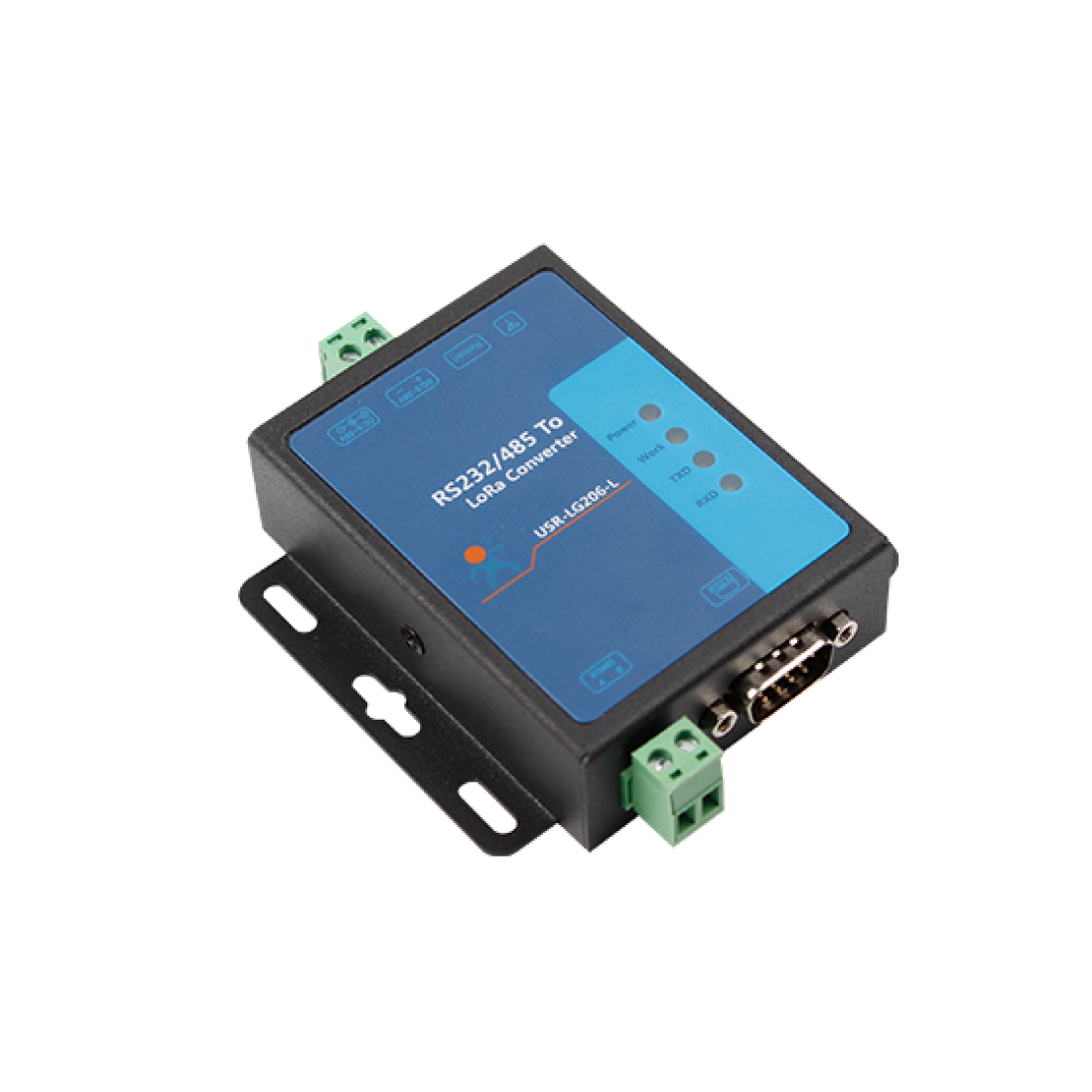

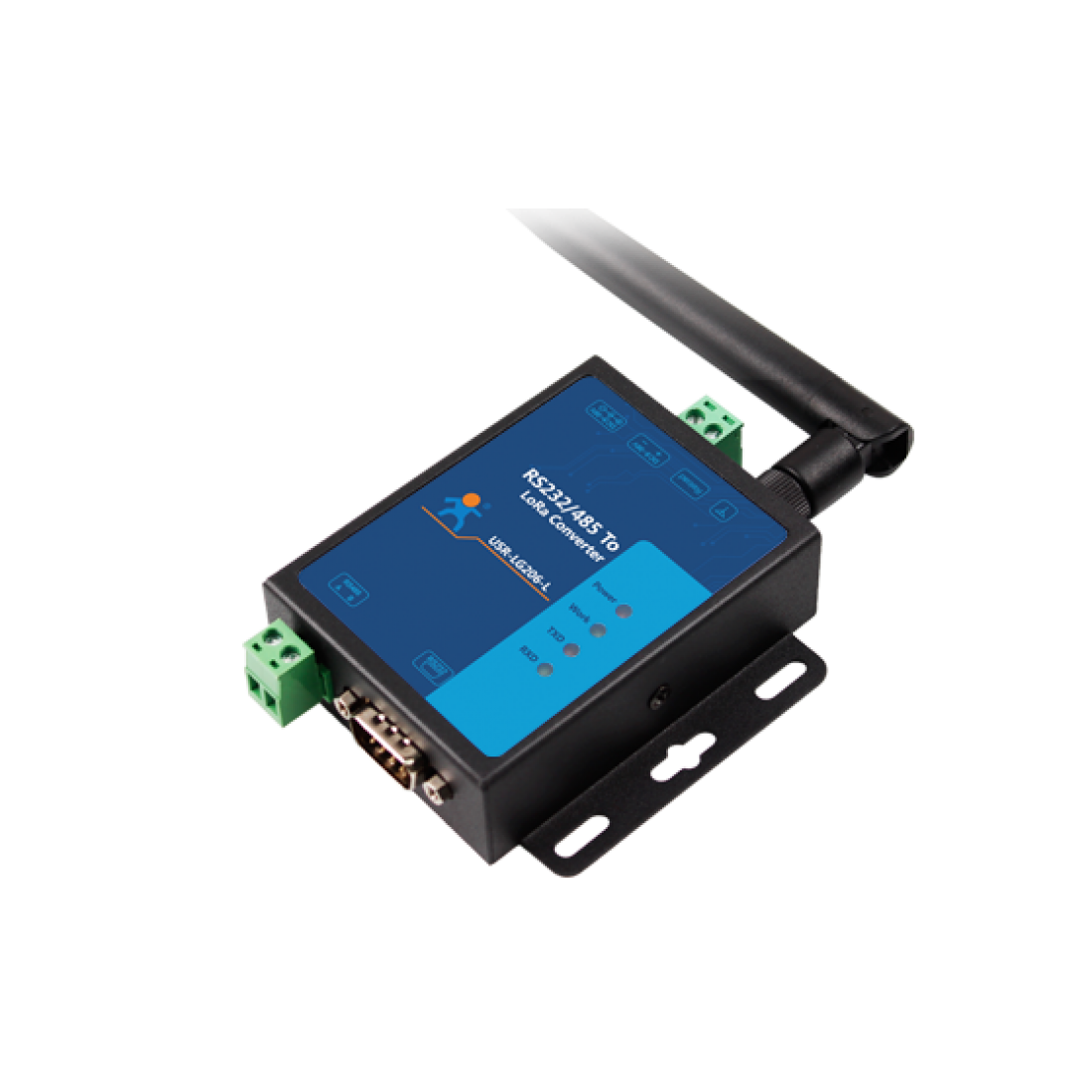

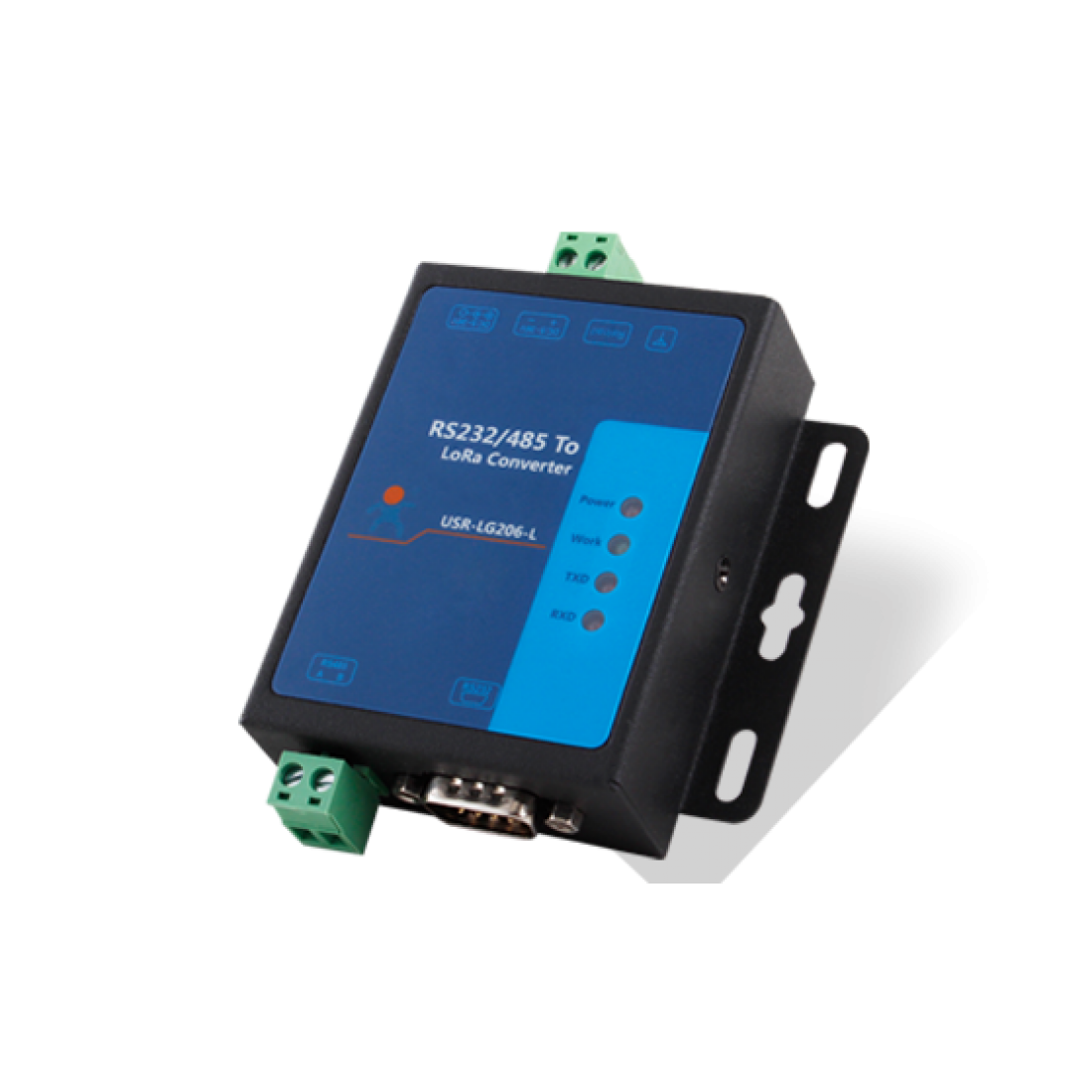

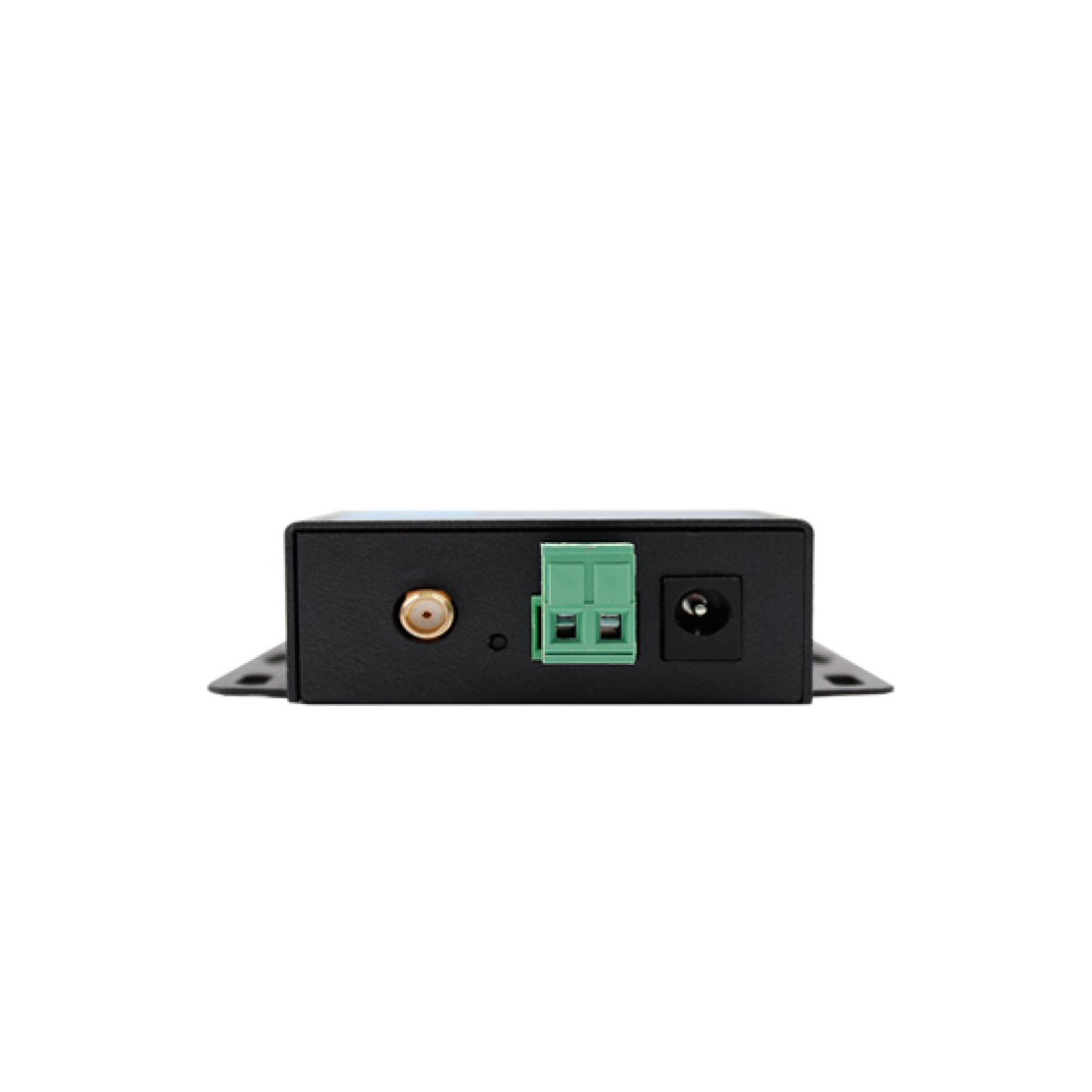

ELECTRONIC COMPONENTS USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included
USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included
USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included
USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included
USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included
USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included
USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included

USR-LG206-H-P LoRa Modem Serial RS232 RS485 to LoRa Converter - Antenna/ Power Adapter / Serial Cable Included

Specifications:

  1. Model: USR-LG206-H-P

  2. Communication Mode: Transparent transmission between RS232/RS485 and LoRa

  3. LoRa Frequency Band: 410 MHz to 441 MHz (default 433 MHz), configurable

  4. Modulation: LoRa spread spectrum

  5. Transmission Distance: Up to 5–8 km (line of sight, with external antenna)

  6. Serial Interfaces: RS232 and RS485, 3-pin terminals + DB9 connector

  7. Baud Rate: 1200 bps to 115200 bps (configurable)

  8. Operating Voltage: DC 5V–36V

  9. Power Consumption:
      • Sleep mode: <5 mA
      • Receive: ~16 mA
      • Transmit: ~120 mA (at max output)

  10. RF Output Power: Up to 100 mW (20 dBm)

  11. Antenna Connector: SMA female, external antenna included

  12. Configuration Interface: Serial AT commands or PC software

  13. Operating Temperature: -40°C to +85°C

  14. Housing Material: Industrial ABS enclosure

  15. Dimensions: Approx. 90 mm × 60 mm × 25 mm

  16. Weight: Approx. 100–120 grams (excluding accessories)

  17. Included Accessories: LoRa antenna, power adapter, serial DB9 cable

Non-returnable
₹2,540.00 ₹3,000.00
Product Details

The USR-LG206-H-P is an industrial-grade LoRa modem designed for long-distance, low-power wireless communication between serial (RS232/RS485) devices. This converter enables reliable and robust wireless networking across distances up to several kilometers using LoRa spread spectrum technology.

With transparent transmission, it acts as a plug-and-play serial bridge — ideal for applications like industrial automation, remote telemetry, agricultural IoT, and SCADA systems. The unit comes with essential accessories including an external antenna, DC power adapter, and serial communication cable for immediate deployment.


Features:

  • Supports both RS232 and RS485 interfaces with auto-detection.

  • Long-range LoRa transmission ideal for outdoor or isolated device networking.

  • Easy-to-use transparent mode for plug-and-play communication.

  • Configurable via serial commands or PC-based utility.

  • Wide voltage input range allows flexible power supply options.

  • Industrial-grade temperature tolerance, suitable for field deployment.

  • Compact, lightweight design for embedded or DIN-rail mounting.

  • Includes all necessary accessories for out-of-the-box operation.
