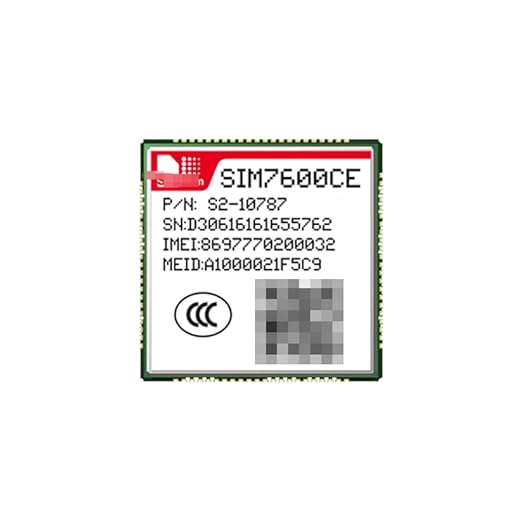

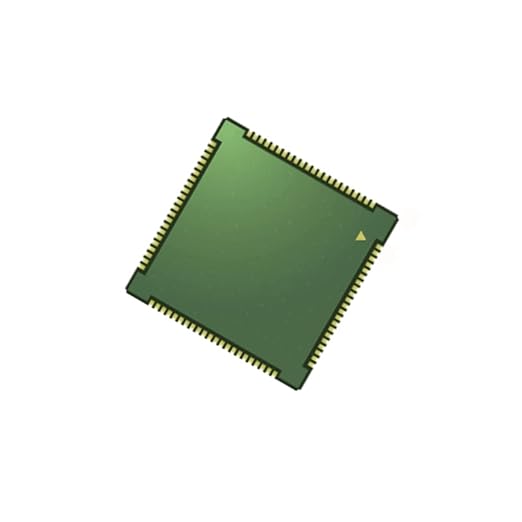

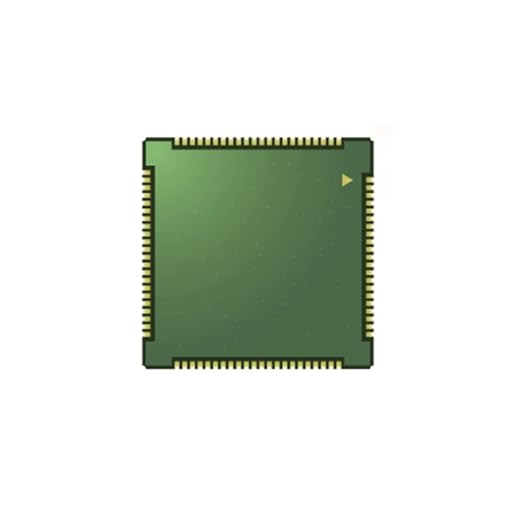

The SIM7600CE‑L1S is a surface-mount LTE Category 4 multi-band cellular module supporting LTE‑FDD/TDD, WCDMA, TD‑SCDMA, CDMA EVDO, and GSM/GPRS/EDGE. Measuring 30 × 30 × 2.9 mm, it's engineered for high-speed data, SMS, voice calls, and embedded GNSS positioning, making it ideal for global IoT, M2M, and automotive applications.
Features
LTE Cat-4 support with high-speed data transmission
GNSS functionality supporting GPS, GLONASS, BeiDou, Galileo, and QZSS
Supports multiple networks: LTE-FDD/TDD, WCDMA, TD-SCDMA, GSM/GPRS/EDGE
Voice, SMS, and data services
USB 2.0, UART, PCM, SPI, I²C, GPIO, and ADC interfaces
Embedded TCP/IP stack
Power-saving features and flight mode support
Compact SMT package for space-constrained designs
