Technical Specifications

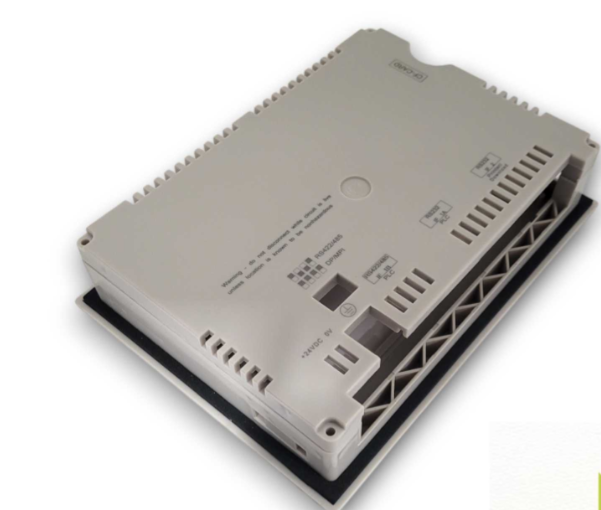

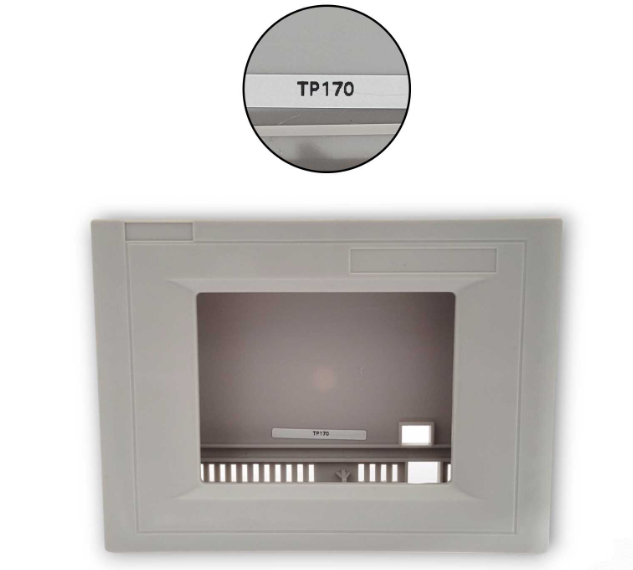

Product Type: HMI Front Enclosure / Bezel Frame
Compatible Model: Siemens TP170 Series (TP170A, TP170B – Mono and Color Variants)
Material:
Polycarbonate (PC) or high-durability ABS plastic
Designed for impact resistance, rigidity, and UV stability
Color Options:
Standard Industrial Grey or Beige (commonly found in Siemens panels)
Mounting Type:
Designed for panel cutout installation
Secured using rear screw locking mechanism or clip latching, depending on panel configuration
Protection Rating:

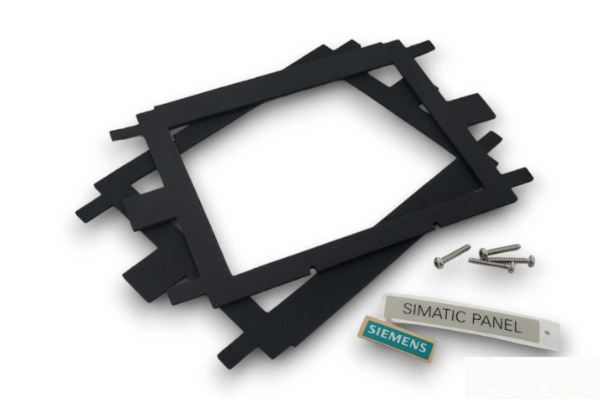

Supports IP65-rated front when used with compatible sealing gasket and proper panel mounting
Provides protection from dust, humidity, and water splashes
Front Frame Dimensions:
Approx. 198 mm × 144 mm (for TP170 front surface area)
Compatible with Siemens’ standard TP170 cutout template
Thickness/Depth:
Typically 20–25 mm, depending on internal cavity depth for touchscreen or display clearance
