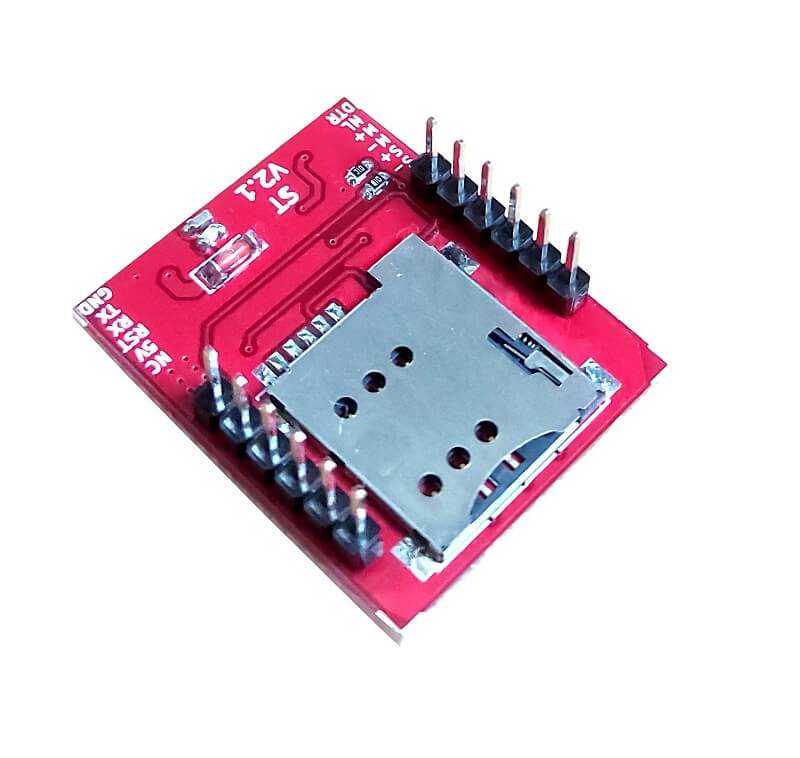

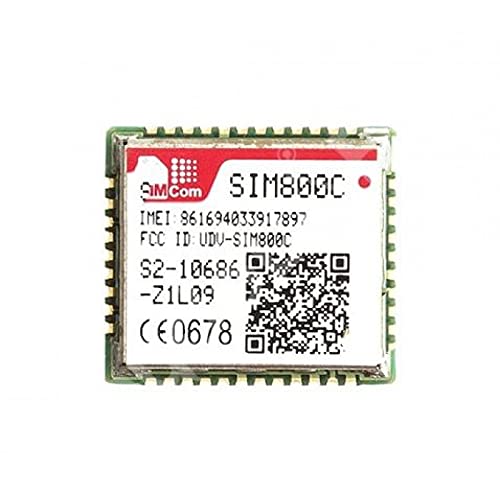

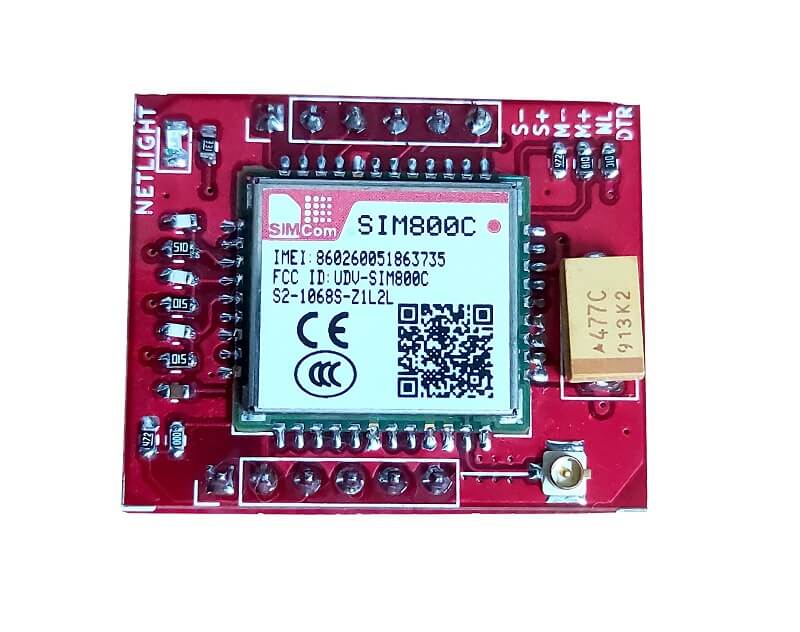

SIM800C GPRS GSM CHIP

The SIM800C is a compact and highly integrated GPRS GSM module that provides quad-band network support for global cellular connectivity. Designed for IoT and embedded applications, it supports voice calls, SMS, and data transmission over GPRS. The module features an onboard TCP/IP stack and supports multiple interfaces including UART, SPI, and ADC, making it flexible for various microcontroller and microprocessor platforms. Its small size, low power consumption, and robust network capabilities make it ideal for smart meters, remote monitoring, tracking devices, and wireless data communication projects.

• Quad-band GSM/GPRS module (850/900/1800/1900 MHz) for worldwide use
• Supports GPRS multi-slot class 12 and data transfer rates up to 85.6 kbps
• Integrated TCP/IP protocol stack for easy internet connectivity
• Supports voice calls, SMS, and data services
• Multiple interfaces: UART, SPI, ADC, PWM, and GPIOs
• Low power consumption with various power-saving modes
• Embedded SIM application toolkit (SIM toolkit) support
• Compact form factor (24 mm × 24 mm) with onboard antenna connector
• Firmware upgradeable via UART
• Ideal for M2M, IoT devices, vehicle tracking, and remote sensors
