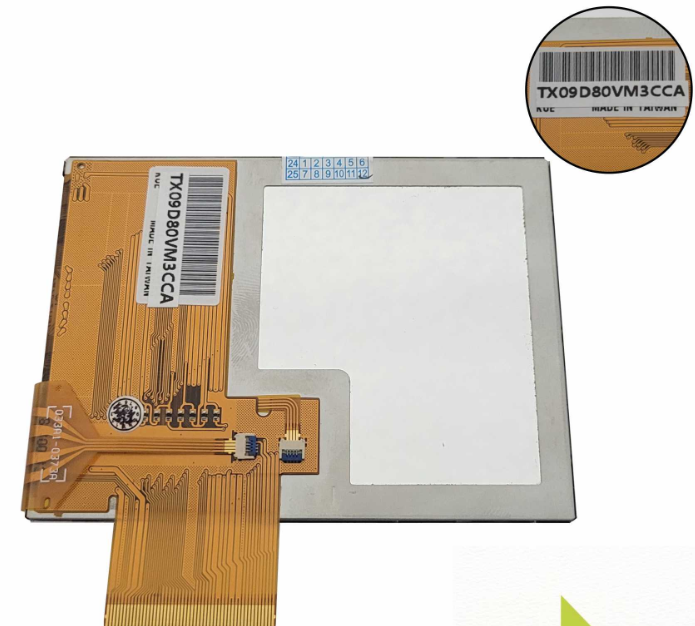

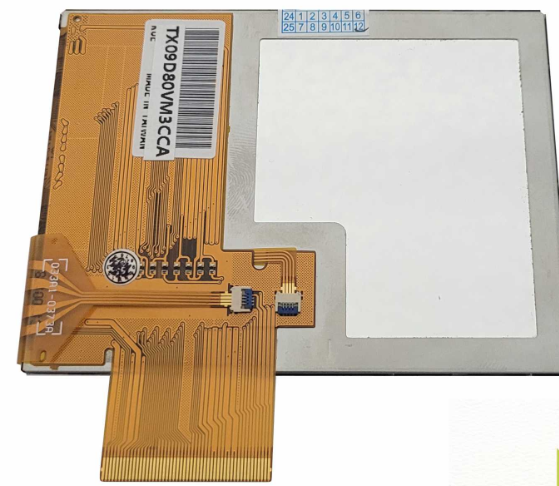

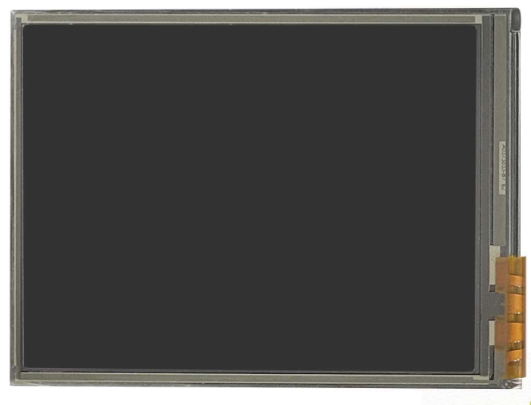

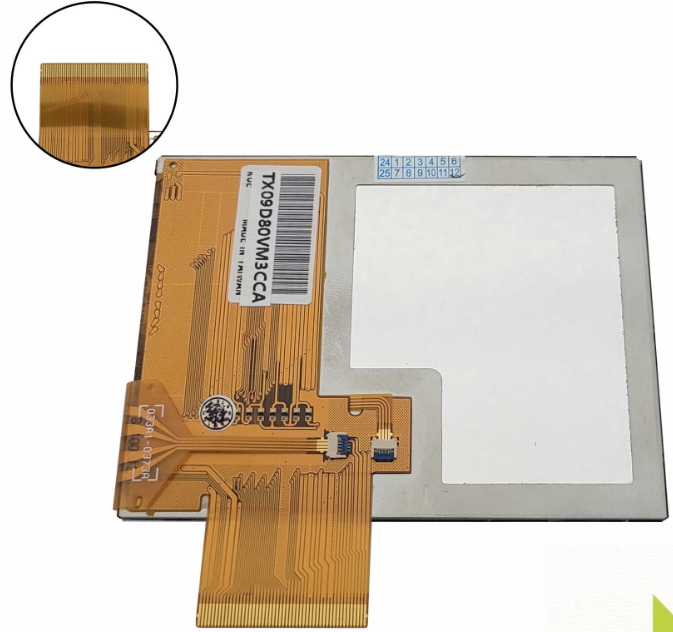

Hitachi TX09D80VM3CCA LCD DISPLAY with Touch Screen

The Hitachi TX09D80VM3CCA is a 3.5-inch QVGA (240×320) TFT-LCD display module with an integrated 4-wire resistive touchscreen, optimized for industrial, medical, and mobile applications. With a white LED (WLED) backlight, support for LVDS or CMOS interface, and a compact yet rugged design, it ensures clear display quality, excellent touch responsiveness, and long-term durability—even in demanding environments.

Mechanical Specifications:

• Module Dimensions: ~76.9 mm (W) × 63.9 mm (H) × ~4.3 mm (D)

• Active Area: 53.64 mm (W) × 71.52 mm (H)

• Weight: Approx. 60 grams

• Mounting: Rear and bezel compatible with embedded housings

Electrical & Environmental Characteristics:

• Logic Supply Voltage: 3.3 V (typical)

• Touchscreen Durability: >1 million actuations

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –30 °C to +80 °C

• Power Consumption: Low, suitable for battery-powered devices

• RoHS Compliance: Yes

Applications:

• Medical handheld diagnostic tools

• Industrial handheld terminals and HMIs

• Mobile and portable embedded devices

• Control panels in automation systems

• Test and measurement equipment
