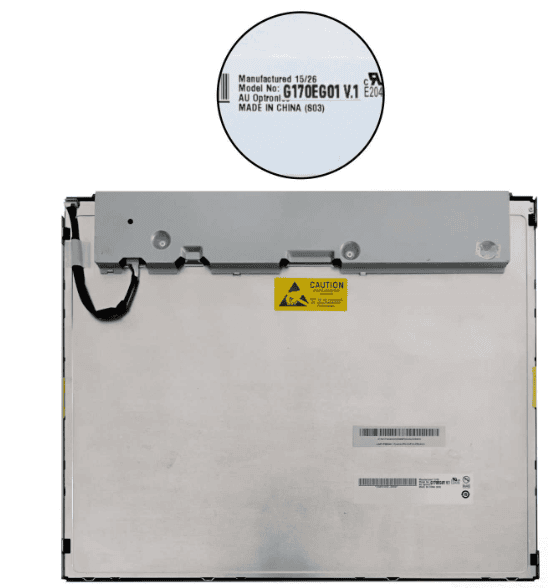

AUO G170EG01-V.1 LCD DISPLAY

The AUO G170EG01-V.1 LCD Module is a 17.0-inch a-Si TFT-LCD panel that delivers a robust visual experience with an SXGA resolution of 1280(RGB)×1024, resulting in a pixel density of 96 PPI. It features a large active area of 337.92(W) × 270.336(H) mm, making it suitable stripped for industrial and high-performance applications requiring detailed display output.

With a luminance of 350 cd/m² (Typ.) and a contrast ratio of 800:1 (Typ.), the screen offers clear visibility and vibrant images, even in moderately lit environments. The wide viewing angles of 80°/80°/60°/80° (CR≥10) ensure consistent color and clarity from various perspectives.

Its 20/10 ms (Tr/Td) response time supports smoother transitions and reduced ghosting. The panel supports 16.7 million colors, covering 72% of the NTSC color gamut, and features antiglare treatment with a 3H hard coating, enhancing usability in bright settings.

Equipped with an LVDS (2 channel, 8-bit) 30-pin connector, it operates at a 60 Hz frame rate and is powered by 5.0 V (Typ.). The WLED backlight, rated at 50K hours, comes with a built-in LED driver. Its extended operating and storage temperature range (-30°C to 85°C) ensures durability in extreme environments.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
