Specification:

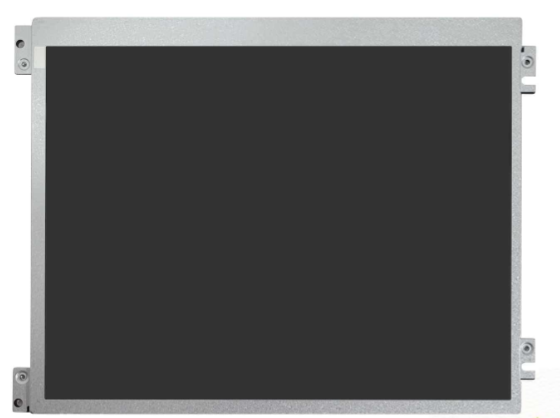

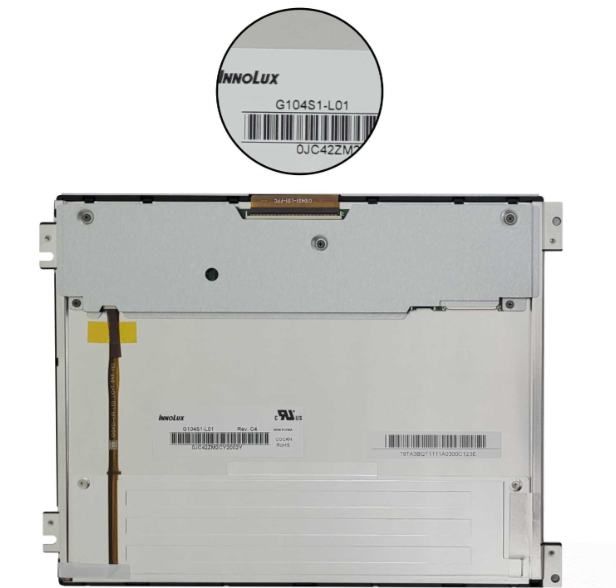

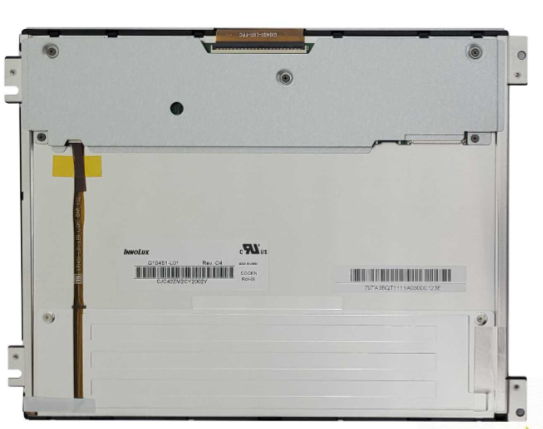

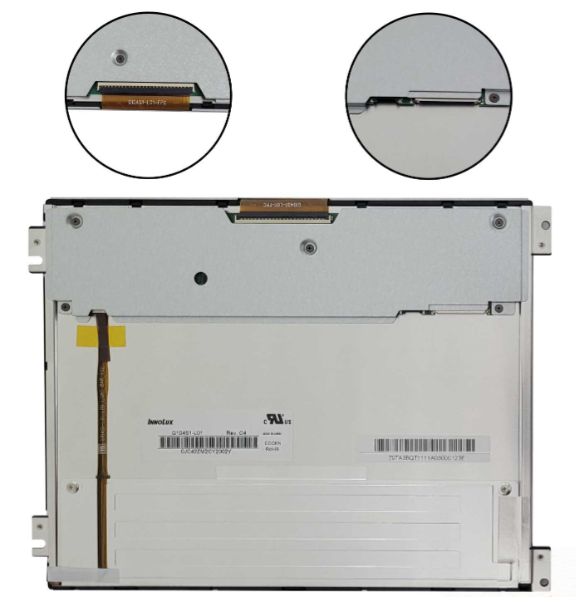

Model: G104S1‑L01
Display Size: 10.4 inches (diagonal)
Resolution: XGA (1024 × 768 pixels)
Aspect Ratio: 4:3
Panel Type: a-Si TFT-LCD
Display Mode: Normally White, Transmissive
Color Depth: 262K / 16.7M colors (6-bit + FRC or 8-bit)
Brightness: ~450–500 cd/m² (typical)
Contrast Ratio: ~700:1
Viewing Angles: 80° (L/R), 70° (U/D) – (CR ≥10)
Surface Treatment: Anti-Glare (AG), Hard Coating (3H)
Backlight Type: White LED (edge-lit with integrated driver)
Backlight Lifetime: ~50,000 hours
Signal Interface: LVDS (1 channel, 6/8-bit selectable)
Power Supply Voltage: 3.3V (typical)
Active Area: 210.43 mm × 157.82 mm
Non-returnable
₹12,440.00 ₹16,500.00
