DEVELOPMENT BOARDORANGE PIORANGE PI BOARD Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3
Orange Pi-one 512 H3

Orange Pi-one 512 H3

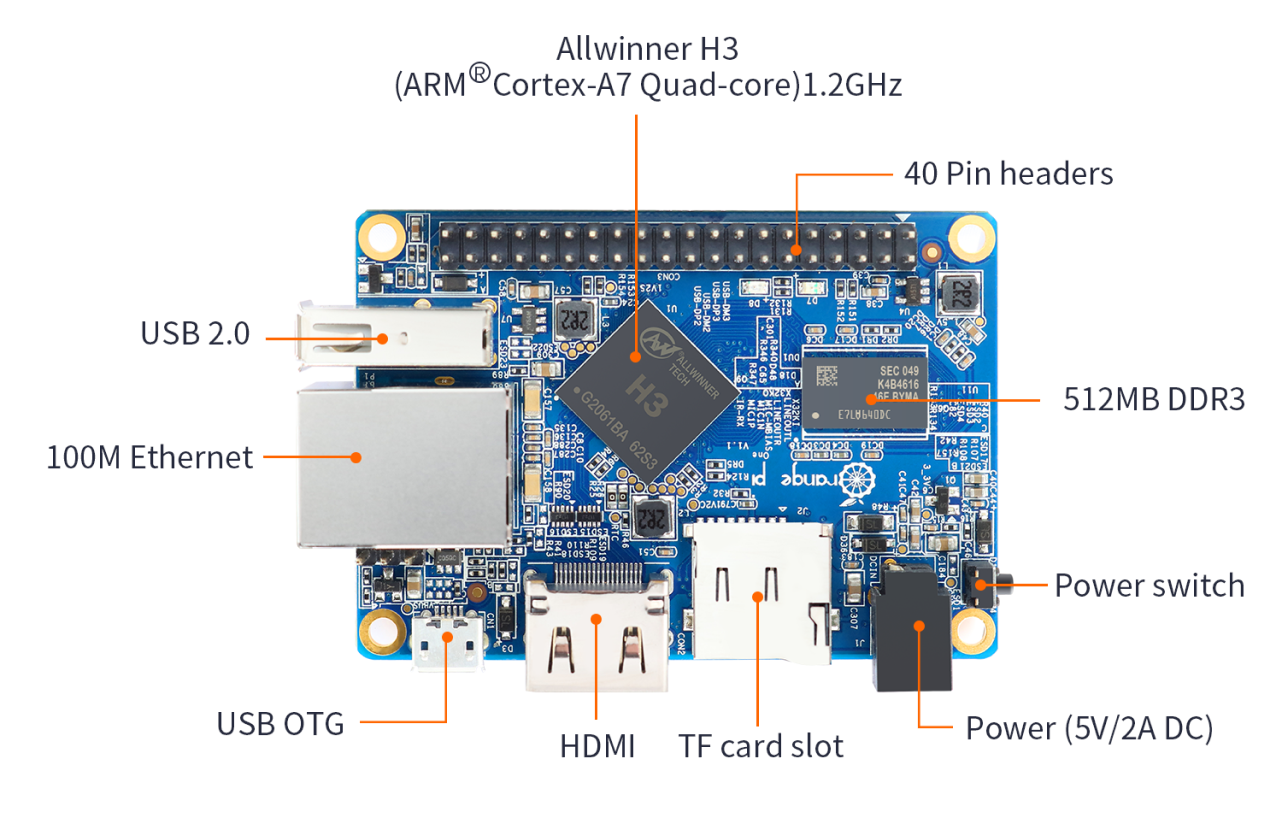

Specifications (in bullet or numbered format):

  1. Processor: Allwinner H3 Quad-core Cortex-A7

  2. GPU: Mali-400MP2

  3. RAM: 512MB DDR3

  4. Storage: microSD card slot (supports up to 32GB or more)

  5. Video Output: HDMI 1.4 (up to 1080p)

  6. Audio Output: HDMI

  7. USB Ports: 1 × USB 2.0 Host, 1 × Micro USB (OTG)

  8. Networking: 10/100 Ethernet

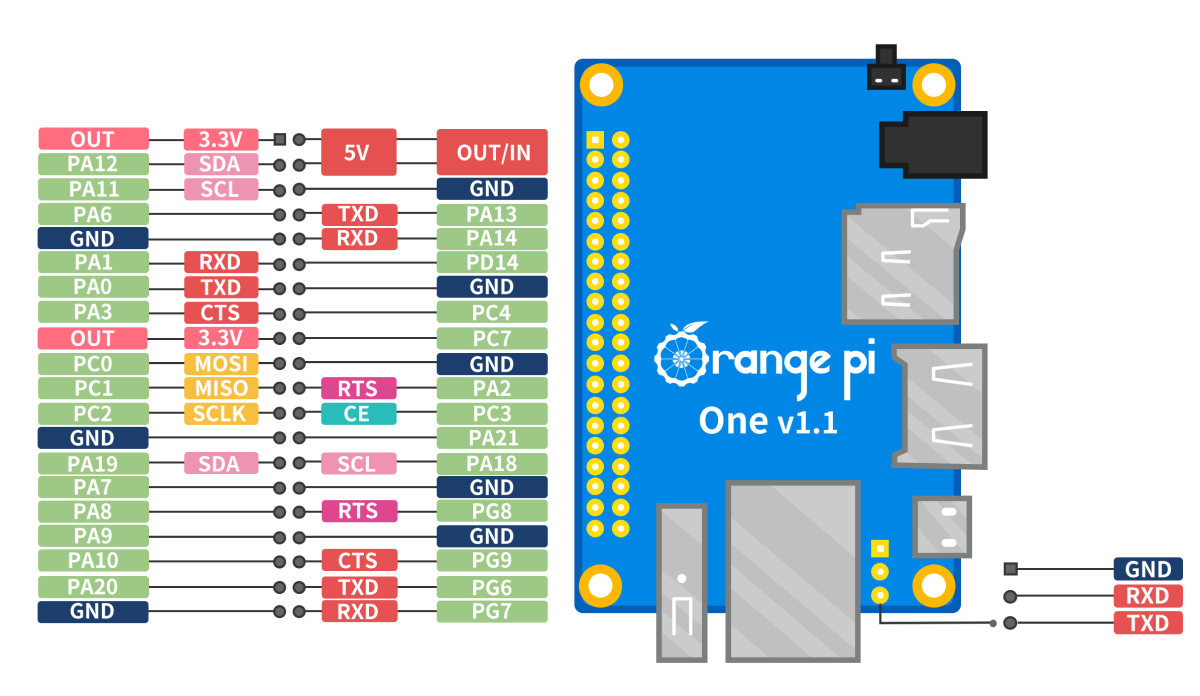

  9. GPIO: 40-pin GPIO header (Raspberry Pi compatible layout)

  10. Power Input: 5V/2A via Micro USB

  11. Operating System: Supports Android, Debian, Ubuntu, Armbian

  12. Board Dimensions: 69 × 48 mm

  13. Weight: ~35 grams

Non-returnable
₹4,000.00 ₹5,000.00
Product Details

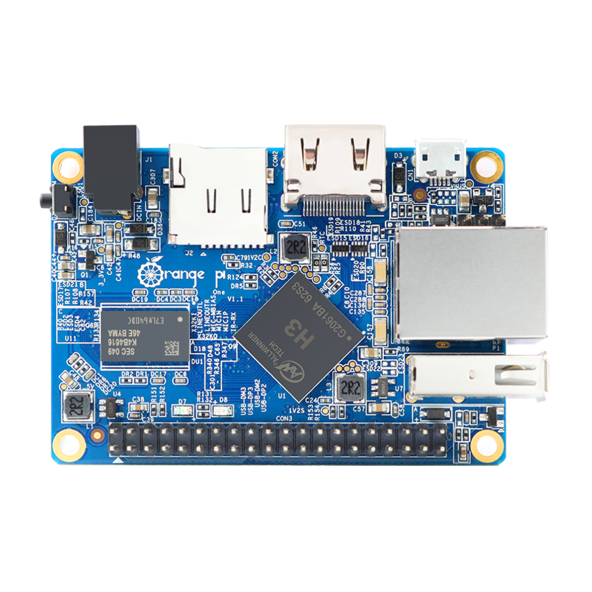

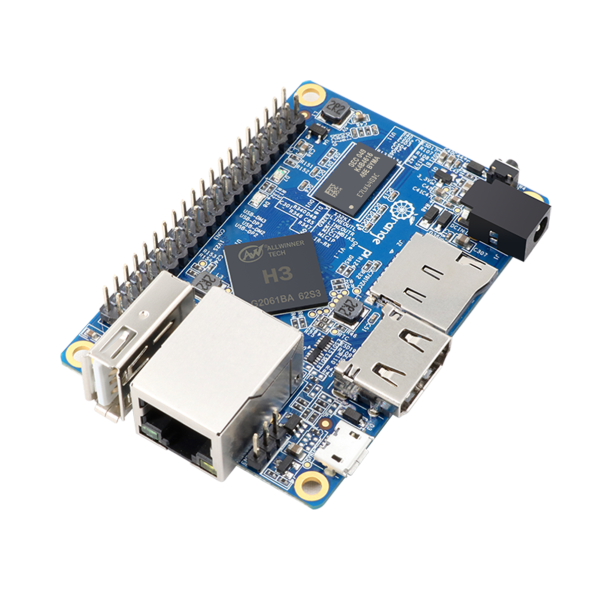

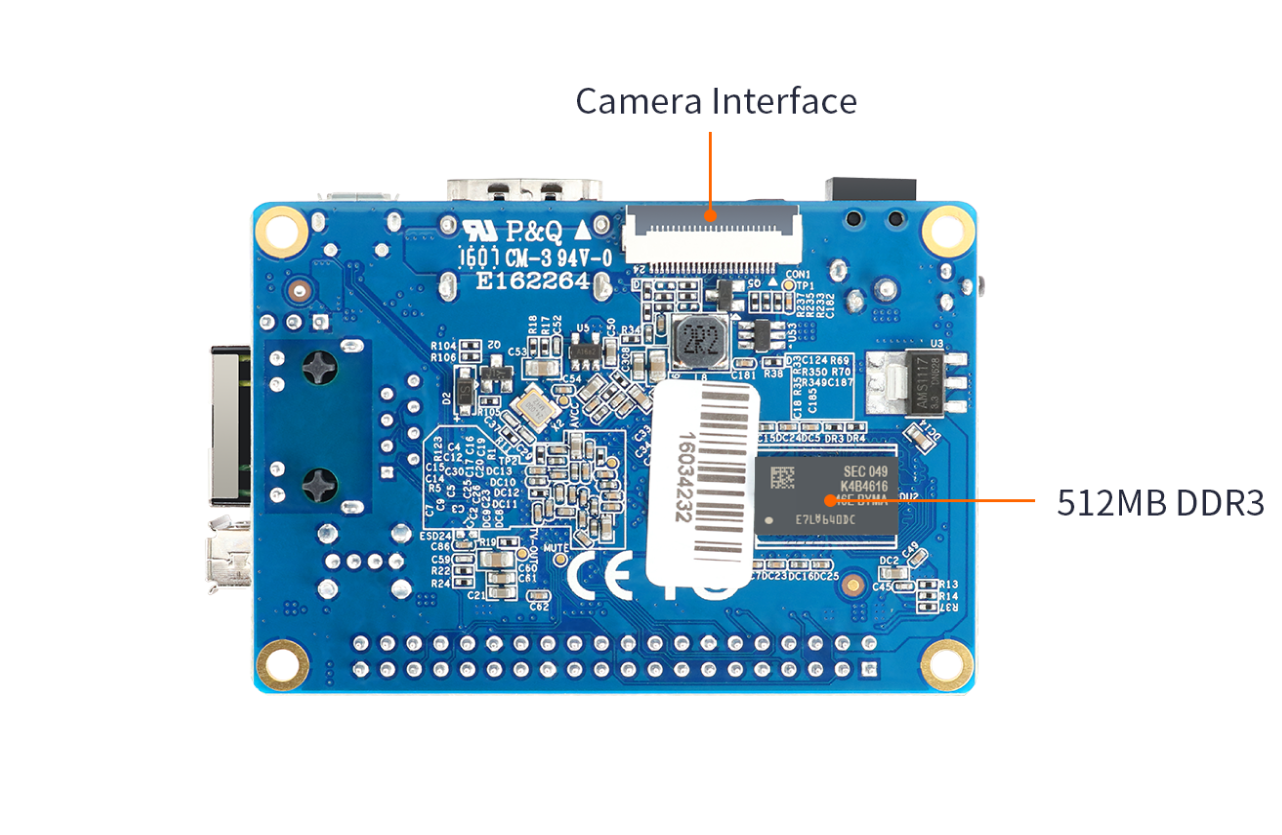

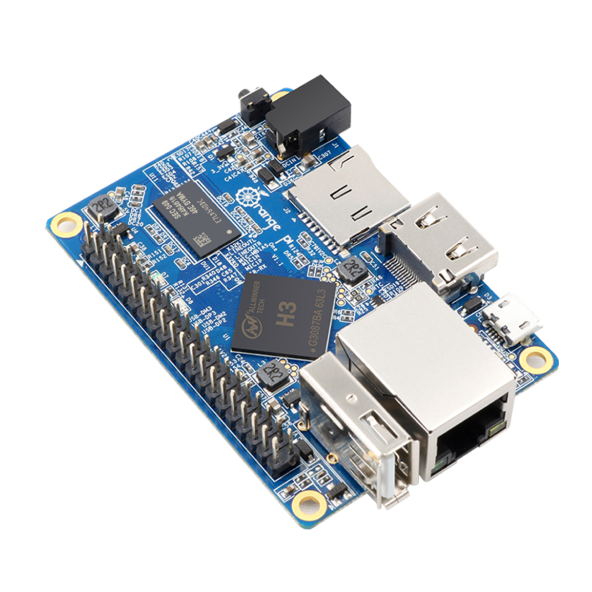

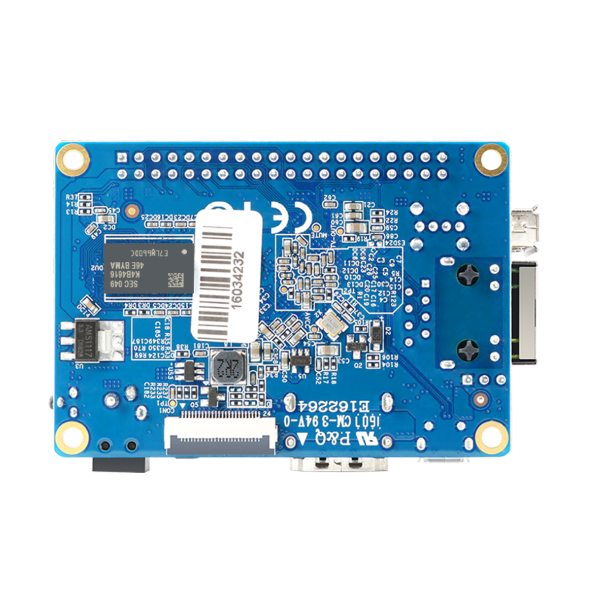

The Orange Pi One is a low-cost, compact single-board computer powered by the Allwinner H3 quad-core ARM Cortex-A7 processor. Designed for makers, developers, and IoT enthusiasts, it offers essential connectivity and multimedia capabilities at an affordable price. With 512MB of DDR3 RAM and support for multiple operating systems such as Android, Ubuntu, and Debian, this board is ideal for embedded projects, prototyping, and learning environments.


Key Features

  • Based on Allwinner H3 quad-core Cortex-A7 processor

  • 512 megabytes of DDR3 SDRAM memory

  • HDMI video output supporting up to 1080p

  • 10/100 Ethernet port for basic network connectivity

  • USB 2.0 and micro USB for peripheral and power input

  • GPIO header for sensors and hardware interfacing

  • Compact size and low power consumption

  • Supports Android, Debian, and Ubuntu operating systems
