Specification:

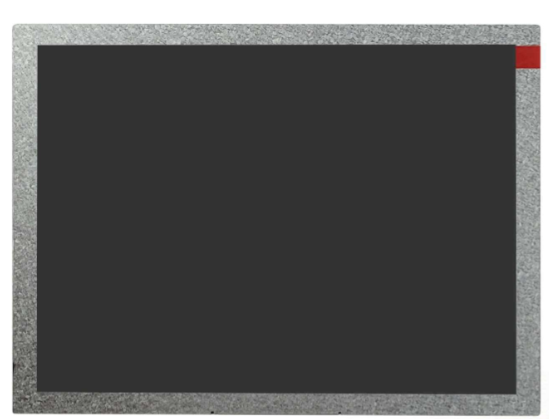

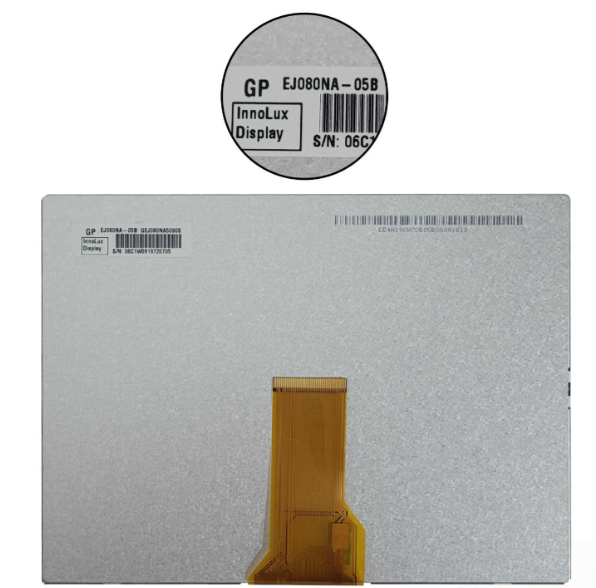

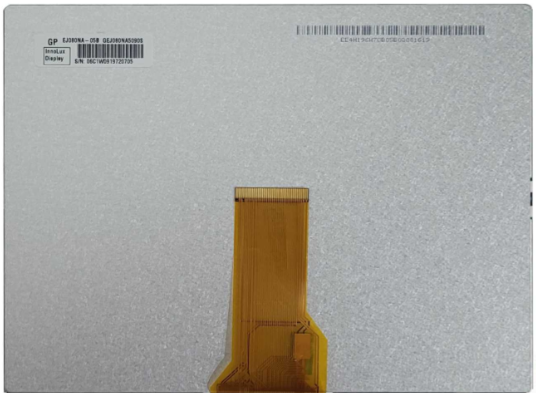

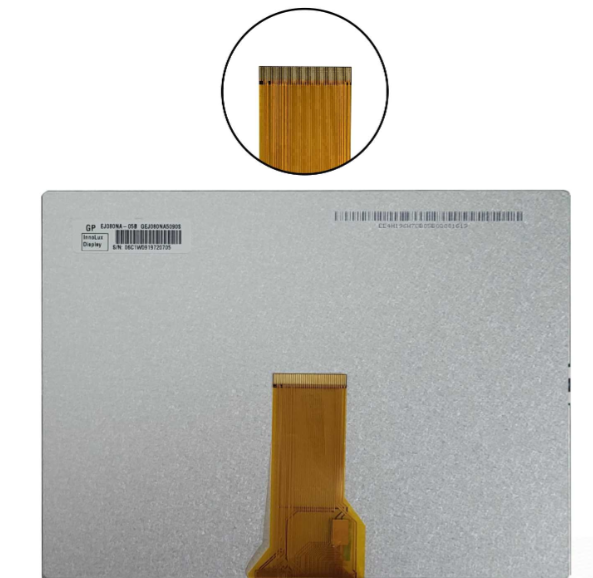

Model: EJ080NA-05B
Display Size: 8.0 inches (diagonal)
Resolution: XGA (1024 × 768 pixels)
Aspect Ratio: 4:3
Display Type: a-Si TFT-LCD
Display Mode: Normally White, Transmissive
Color Depth: 262K / 16.7M colors (6-bit + FRC)
Brightness: ~400–500 cd/m² (typical)
Contrast Ratio: ~500:1 to 800:1
Viewing Angles: ~70°/70°/60°/60° (L/R/U/D)
Backlight Type: White LED (edge-lit or bar type)
Backlight Lifetime: ~30,000 to 50,000 hours
Surface Treatment: Anti-Glare (AG), Hard Coating
Signal Interface: TTL RGB (Parallel) or LVDS (model dependent)
Power Supply Voltage: 3.3V (logic), 12V (backlight driver – if external)
Active Area: ~162 mm (W) × 121.5 mm (H)
Non-returnable
₹6,140.00 ₹7,850.00
