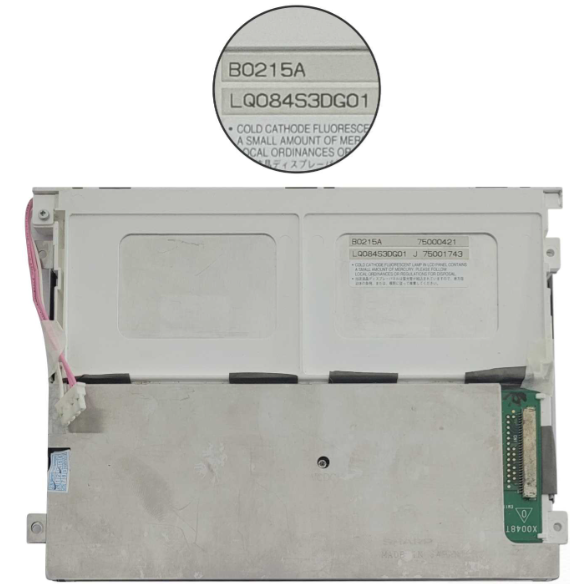

The Sharp LQ084S3DG01 is an 8.4-inch TFT-LCD display module designed for industrial and embedded applications that require clear, high-resolution visuals and reliable performance. With an SVGA resolution of 800 × 600 pixels and a pixel density of 119 PPI, this display delivers sharp and detailed images, suitable for graphical interfaces and data-intensive displays.
The display’s active area measures 170.4 mm (W) × 127.8 mm (H), offering ample screen space for complex information presentation in control panels, medical devices, or embedded systems.
Operating in TN (Twisted Nematic), Normally White, transmissive mode, the panel relies on its backlight for illumination and features antireflection treatment to reduce glare, improving readability in indoor environments.
With a luminance of 350 cd/m² and a contrast ratio of 320:1, the display delivers adequate brightness and crisp contrast for clear visibility in typical indoor lighting conditions. Its viewing angles are 80° horizontally and 45° vertically, providing decent viewing flexibility, although vertical angles are more limited compared to some other technologies.
The display boasts a response time of 7 ms (rise) / 23 ms (decay), ensuring smooth image transitions suitable for general industrial and embedded application needs.
Backlighting is provided by two CCFL tubes with a lifespan of up to 50,000 hours, though an external driver is necessary to operate the backlight system.
Designed for durability, the module supports an operating temperature range of -30°C to 80°C, making it well-suited for harsh industrial and commercial environments.
