0.96 Inch I2C/IIC 4pin OLED Display Module BLUE with Green mark module

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display

This 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C protocols. It is having a resolution of 128×64. The package includes display board, display, 4 pin male header pre-soldered to board.

OLED monochrome 128×64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

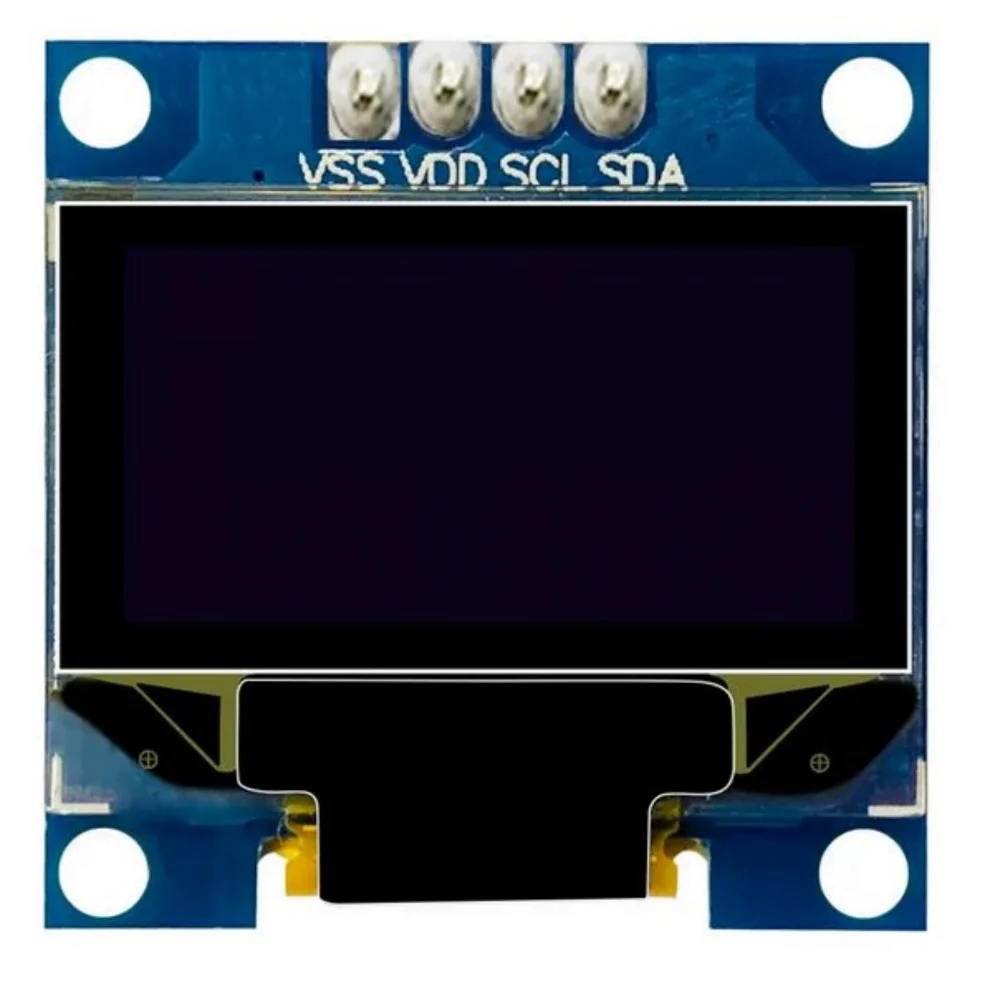

Interface pin for 4 PIN 128×64 OLED

1. VCC: 3.3 volts – 5 Volts

2. GND: Ground

3. SCL: Serial Clock

4. SDA: Serial Data

Features of 4 pin 128 x 64 OLED Display

1.     Super High Brightness (Adjustable)

2.     Super High Contrast (Adjustable)

3.     Embedded Driver/Controller

4.     Display size: 0.96″

5.     Resolution radio:128 x 64

6.     Interface modes: I2C/IIC

7.     working voltage: 3.3V

8.     Control Chip: SSD1306

Package Includes:

1 x GoldenMorning 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE
